Gearbox assembly (page 5 of 7)

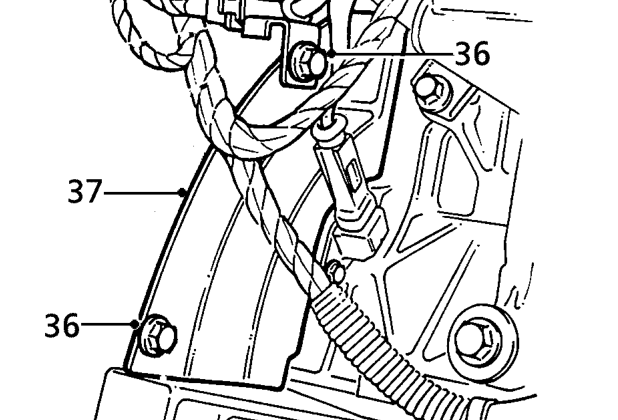

36. Remove 2 bolts securing flywheel rear cover plate.
37. Remove rear cover plate.

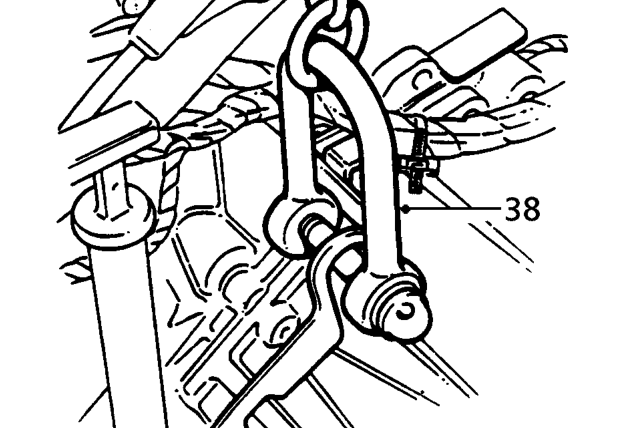

38. Fit suitable lifting equipment to gearbox lifting eye.
39. Raise chains to take weight of gearbox without exerting load on mountings.
40. Support engine on a jack.

CAUTION: Use a block of wood or hard rubber pad to protect engine.

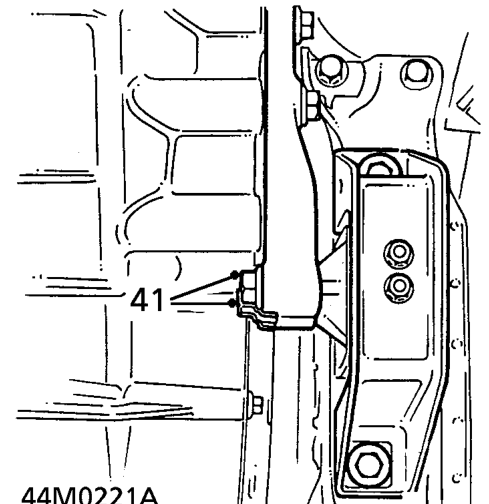

41. Remove 2 bolts securing LH mounting bracket to mounting.

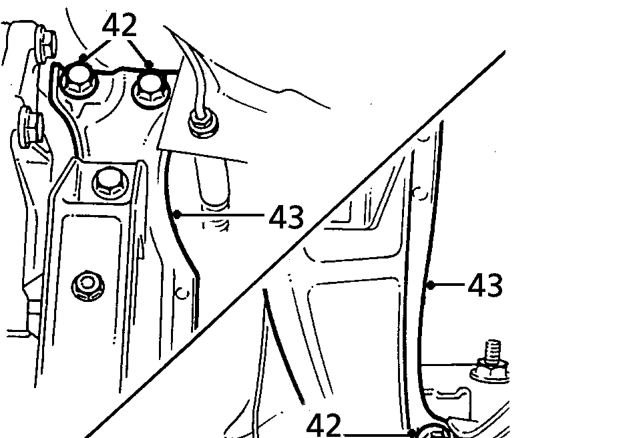

42. Remove 4 bolts securing mounting support member to sub frame.
43. Remove support member and mounting assembly.
