Automatic gearboxGearbox assembly · page 3 of 7
Diagram

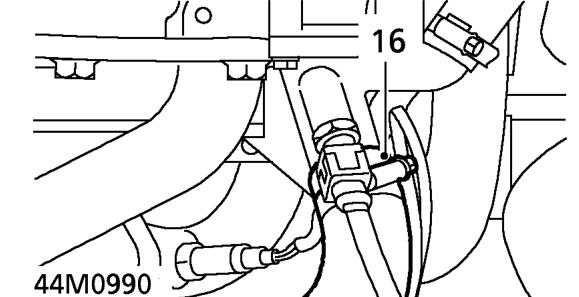

  1. Loosen clip,and disconnect top hose from cylinder head.
Loosen clip,and disconnect top hose from cylinder head.

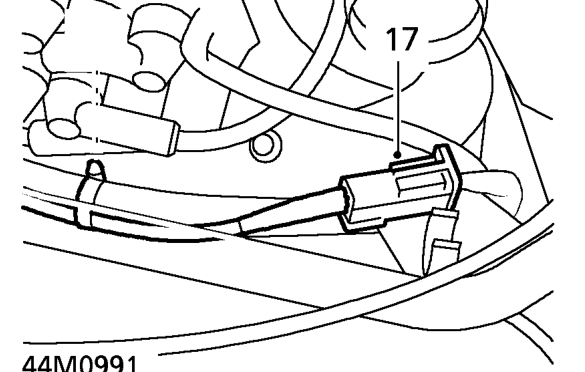

  1. Disconnect oxygen sensor multiplug from engine harness and release from bracket.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Release exhaust front pipe from manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  2. Remove starter motor. See REPAIR MANUAL - Electrical.
Remove starter motor. See REPAIR MANUAL - Electrical.

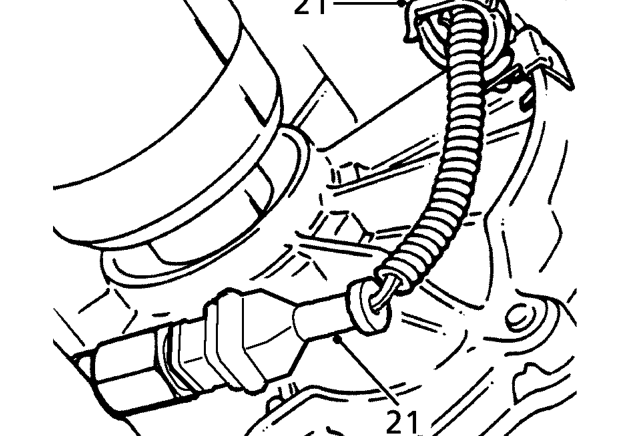

  1. Disconnect multiplug from inhibitor switch and release lead from clip.
Disconnect multiplug from inhibitor switch and release lead from clip.

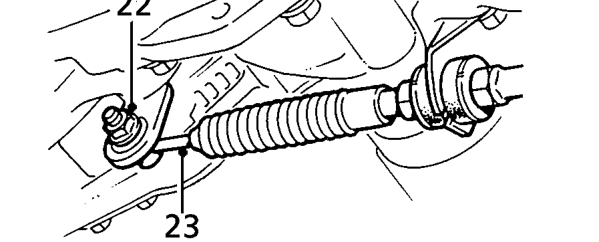

  1. Loosen nut securing selector cable rod to selector lever.
  2. Release selector cable rod from selector lever.
