Automatic gearboxGearbox assembly · page 1 of 7
Diagram

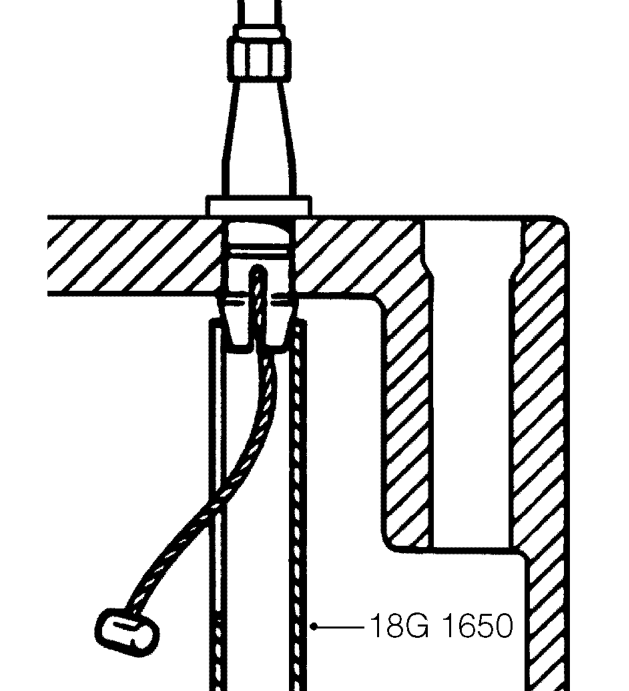

  1. Release downshift outer cable from transmission case using 18G 1650.
  2. Remove kickdown cable.

Refit

  1. Position kickdown cable and secure outer cable to gearbox case.
  2. Connect inner cable to valve cam.
  3. Secure cable to abutment bracket and connect inner cable to throttle cam.
  4. Fit fluid pan. See REPAIR MANUAL - Automatic Gearbox.
  5. Fit starter motor. See REPAIR MANUAL - Electrical.
  6. Remove stand(s) and lower vehicle.
  7. Refill gearbox with fluid. See REPAIR MANUAL - Maintenance.
  8. Adjust throttle and kickdown cables. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.
  9. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  10. Connect battery earth lead.

GEARBOX ASSEMBLY

Service repair no - 44.20.01

Remove

  1. Remove bonnet. See REPAIR MANUAL - Body.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

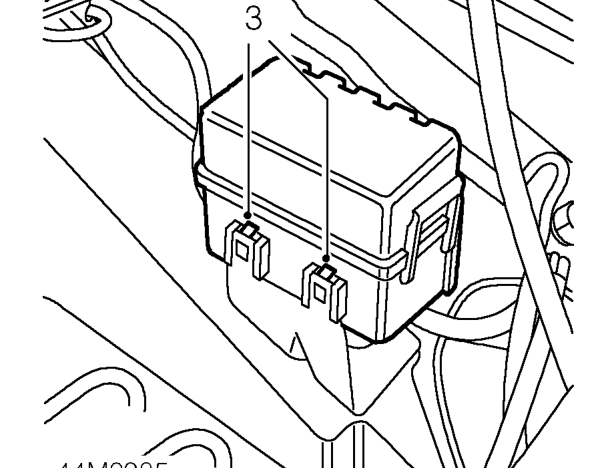

Gearbox assembly – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Depress 2 retainers and release fuse box from bracket

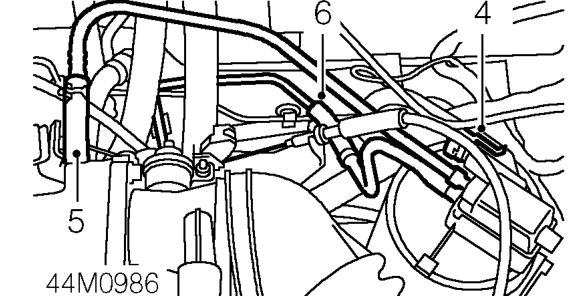

Gearbox assembly – Depress 2 retainers and release fuse box from bracket
  1. Disconnect multiplug from purge valve.
  2. Disconnect purge hose from inlet manifold.
  3. Release clip and disconnect charcoal canister hose from fuel tank breather pipe.
