Rover 100 Repair Manual Supplement (1996-1998)04 · Engine
04 · Engine

Engine and automatic gearbox assembly (page 3 of 8)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineEngine and automatic gearbox assembly · page 3 of 8
Diagram

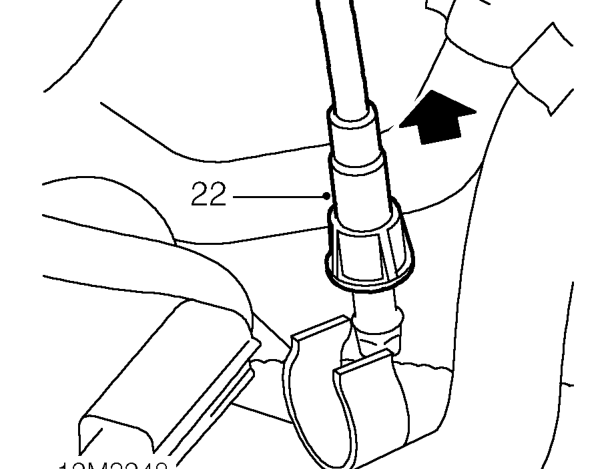

  1. Release clip securing speedo cable joint and separate upper cable from lower cable.

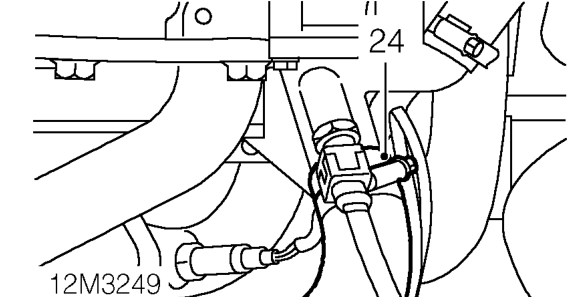

  2. Drain cooling system. See REPAIR MANUAL - Maintenance.
Drain cooling system. See REPAIR MANUAL - Maintenance.

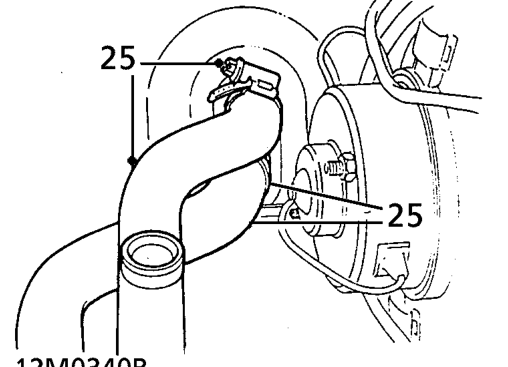

  1. Loosen clip and disconnect top hose from cylinder head.
Loosen clip and disconnect top hose from cylinder head.

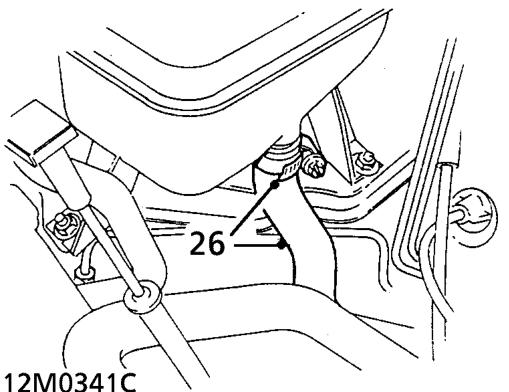

  1. Loosen 2 clips and disconnect 2 hoses from heater.
Loosen 2 clips and disconnect 2 hoses from heater.
  1. Loosen clip and disconnect hose from expansion tank.
