Rover 100 Repair Manual Supplement (1996-1998)04 · Engine
04 · Engine

Engine and automatic gearbox assembly (page 5 of 8)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineEngine and automatic gearbox assembly · page 5 of 8
Diagram

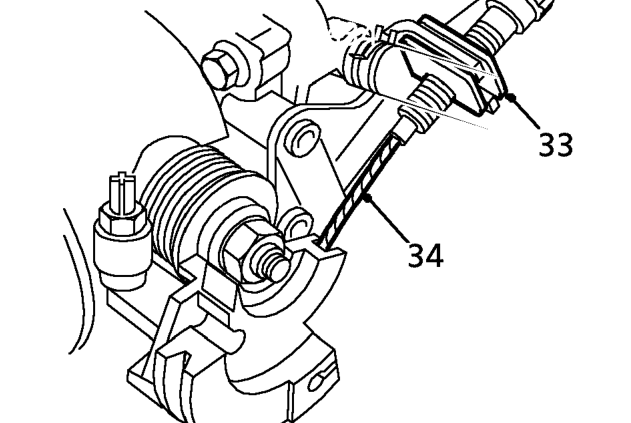

  1. Release throttle cable adjusting nut from abutment bracket.
  2. Disconnect throttle cable from throttle cam and move aside.
Disconnect throttle cable from throttle cam and move aside.

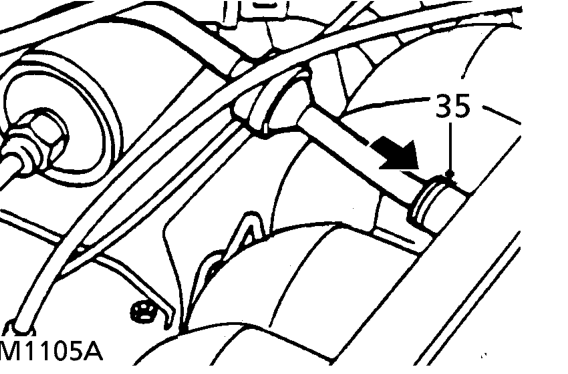

  1. Depress plastic collar and disconnect brake servo hose from inlet manifold.
Depress plastic collar and disconnect brake servo hose from inlet manifold.

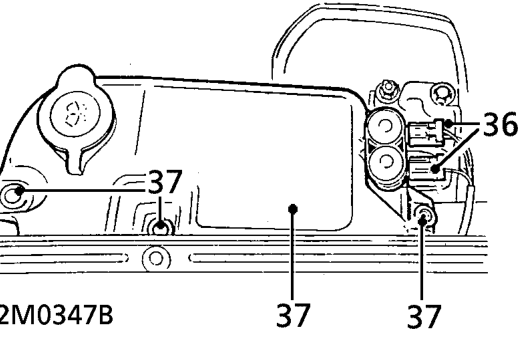

  1. Disconnect 2 multiplugs from washer pumps.
  2. Remove 3 screws securing washer reservoir and move reservoir aside.
  3. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove starter motor. See REPAIR MANUAL - Electrical.
Remove starter motor. See REPAIR MANUAL - Electrical.

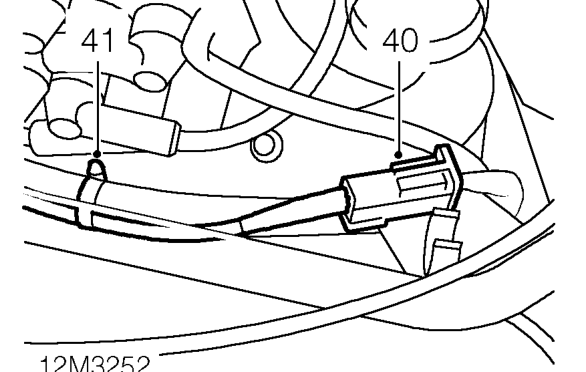

  1. Release and disconnect oxygen sensor multiplug.
  2. Remove clip securing oxygen sensor lead to engine harness.
  3. Disconnect exhaust front pipe from manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
