Rover 100 Repair Manual Supplement (1996-1998)04 · Engine
04 · Engine

Engine and automatic gearbox assembly (page 4 of 8)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineEngine and automatic gearbox assembly · page 4 of 8
Diagram

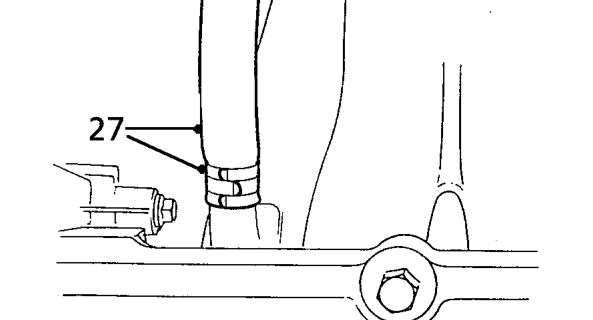

  1. Release clip and disconnect coolant hose from inlet manifold.
Release clip and disconnect coolant hose from inlet manifold.

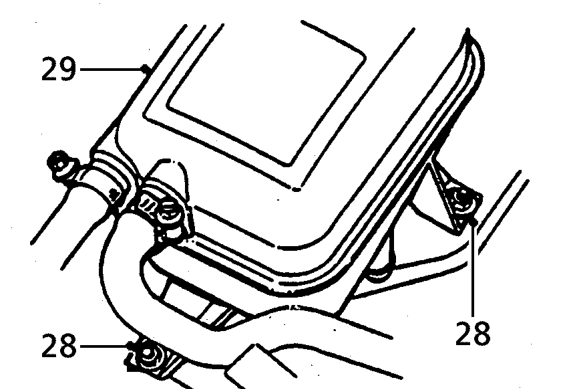

  1. Remove 3 nuts securing expansion tank to body.
  2. Position expansion tank aside.
  3. Position cloth to fuel feed union.
Position cloth to fuel feed union.

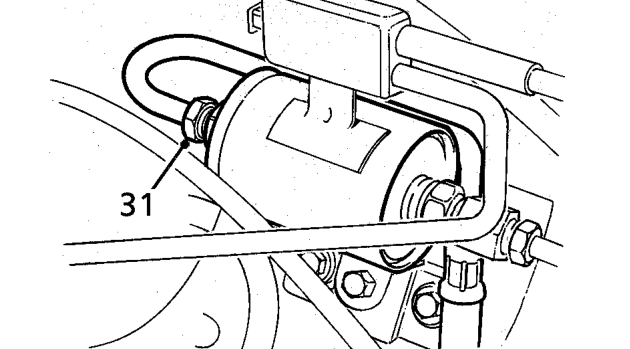

  1. Use a backing spanner and disconnect fuel feed union from filter.

CAUTION: Plug the connections.

Use a backing spanner and disconnect fuel feed union from filter.

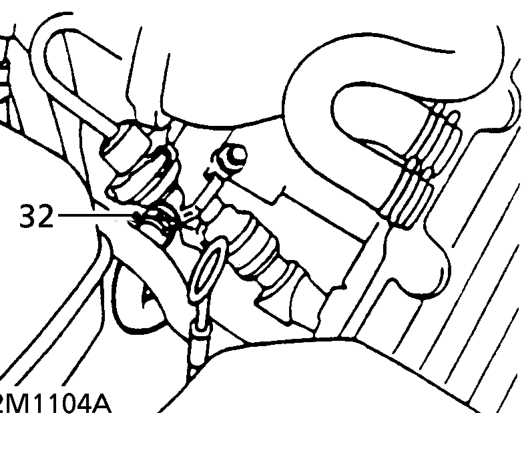

  1. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.
