Rover 100 Repair Manual Supplement (1996-1998)04 · Engine
04 · Engine

Engine and automatic gearbox assembly (page 7 of 8)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineEngine and automatic gearbox assembly · page 7 of 8
Diagram

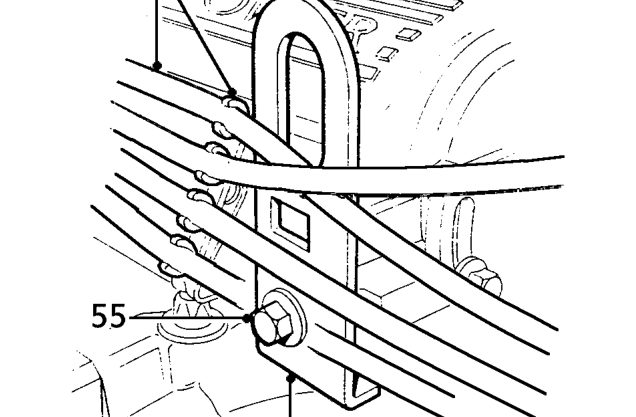

  1. Release plug leads from clip.
  2. Fit lifting bracket, tool 18G 1572/2 and tighten bolt to 9 Nm.
Fit lifting bracket, tool 18G 1572/2 and tighten bolt to 9 Nm.

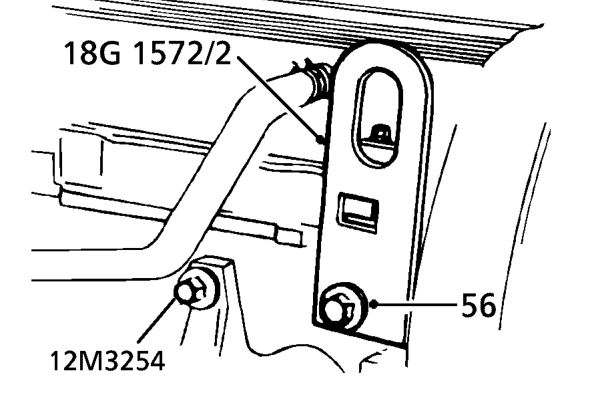

  1. Fit lifting bracket tool, 18G 1572/2 to cylinder head above dipstick tube, and tighten bolt to 9 Nm.
Fit lifting bracket tool, 18G 1572/2 to cylinder head above dipstick tube, and tighten bol

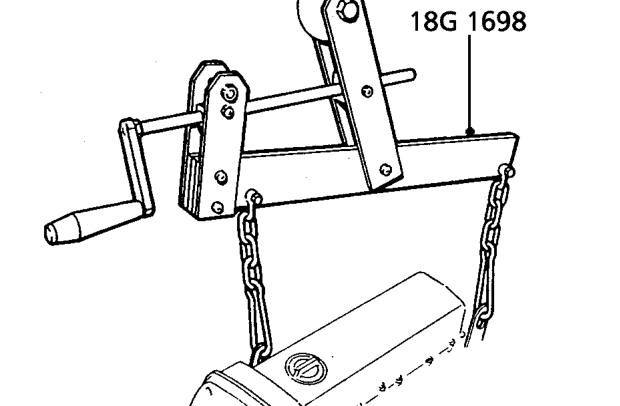

  1. Use a hoist and connect adjustable lifting bracket 18G 1698 to engine.
  2. Raise chains to take weight of engine without exerting load on mountings.
Raise chains to take weight of engine without exerting load on mountings.

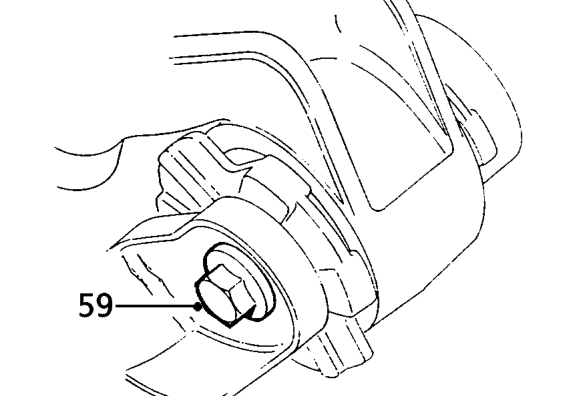

  1. Remove through bolt from engine RH mounting.
