Oil pressure switch (page 2 of 3)
- Make
- Rover
- Model
- 200 Workshop Manual
- Year
- 1995–1999
- Section
- Repairs
Engine - K16 with VVCOil pressure switch · page 2 of 3

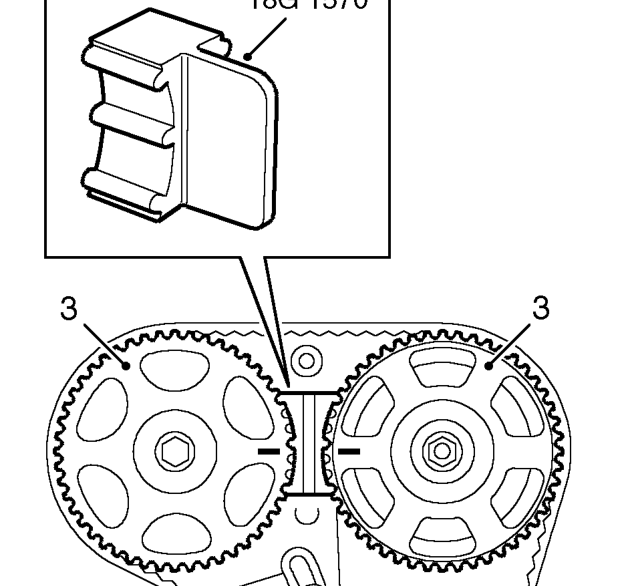

- Using a socket and extension bar on crankshaft pulley bolt, rotate crankshaft clockwise to align camshaft gear timing marks - 90° BTDC. Fit camshaft gear locking tool 18G 1570.
- Support engine on jack.
CAUTION: Place a block of wood between sump and jack to prevent damaging the sump.

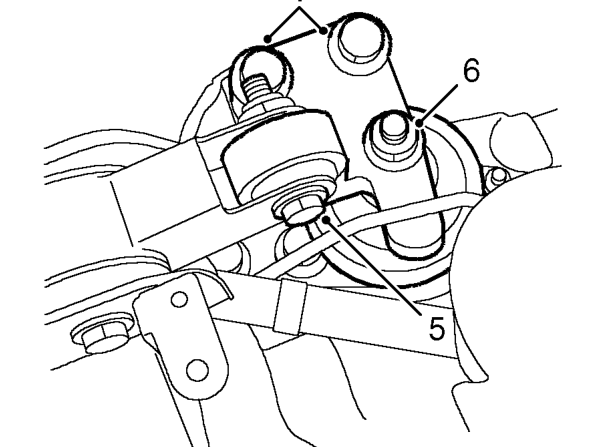

- Remove bolt securing engine mounting bracket to steady bar.
- Remove nut securing engine mounting bracket to engine mounting.
- Remove 2 bolts securing engine mounting bracket to engine, remove mounting bracket.
- Remove camshaft timing belt lower cover. See this section.
