Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Valve stem oil seal (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K8Valve stem oil seal · page 2 of 2
Diagram

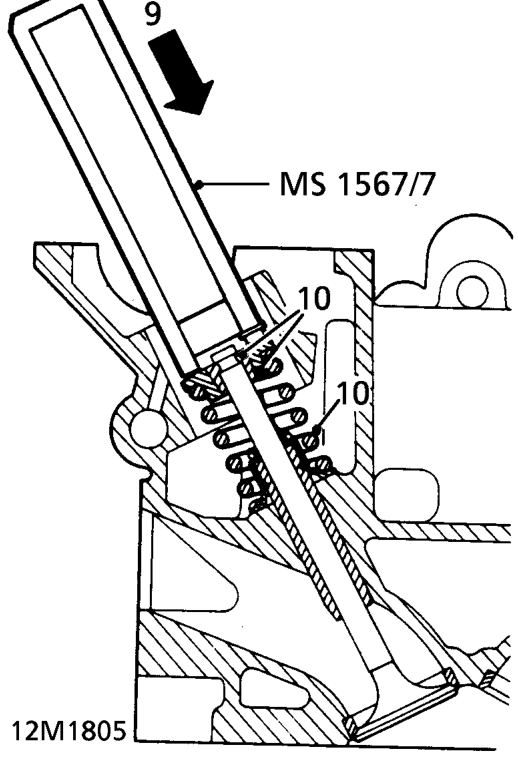

  1. Position tool MS 1567/7 to valve spring cap.
  2. Strike tool firmly with hammer to release spring cap collets.
  3. Remove collets, spring cap, and valve spring.

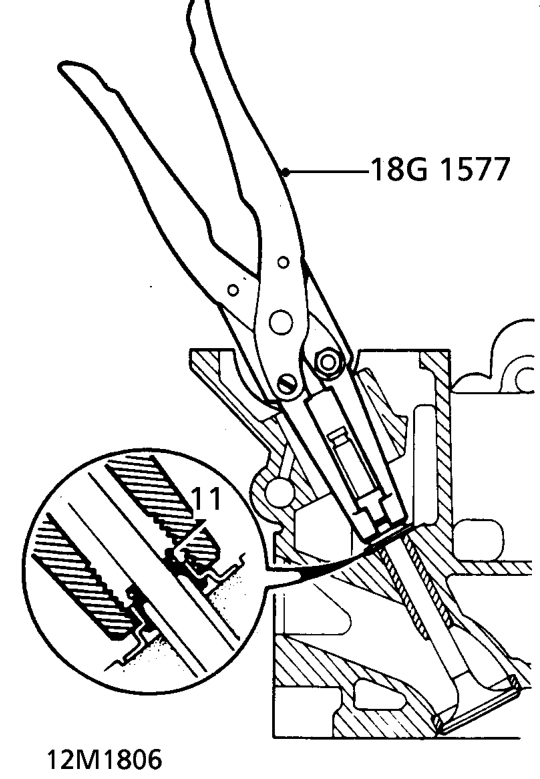

Remove collets, spring cap, and valve spring.
  1. Use tool 18G 1577 to remove valve stem oil seal.
