Rover 200 Workshop Manual (1995-1999)15 · Manifold & exhaust systems
15 · Engine

Exhaust manifold gasket - ’K16’ without air conditioning

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Exhaust manifold gasket - ’K16’ without air conditioning
Manifold & exhaust systemsExhaust manifold gasket - ’K16’ without air conditioning

Refit

  1. Clean mating faces of cylinder head and manifold.
  2. Fit new gasket to manifold studs.
Fit new gasket to manifold studs.

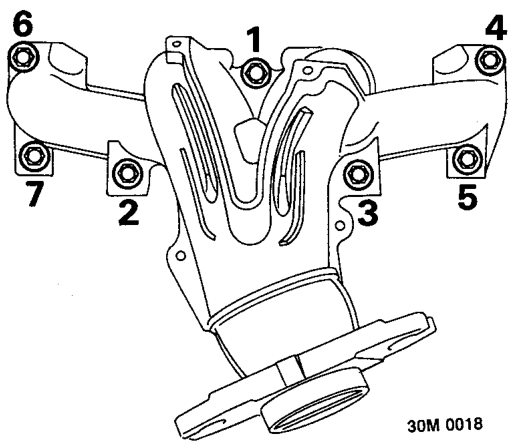

  1. Position manifold on studs, fit nuts and tighten in the sequence illustrated to 45 Nm.
  2. Fit front pipe to manifold gasket. See this section.

EXHAUST MANIFOLD GASKET - ’K16’ WITHOUT AIR CONDITIONING

Service repair no - 30.15.12

Remove

  1. Remove front pipe to manifold gasket. See this section.
Exhaust manifold gasket - ’k16’ without air conditioning – Remove front pipe to manifold gasket. See this section.

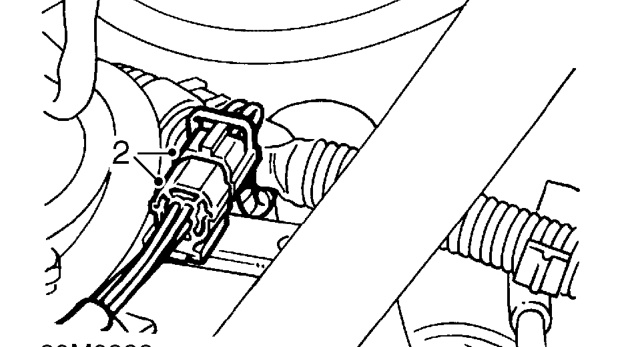

  1. Release HO2S multiplug from bracket.
  2. Disconnect HO2S multiplug from harness.
Exhaust manifold gasket - ’k16’ without air conditioning – Disconnect HO2S multiplug from harness.

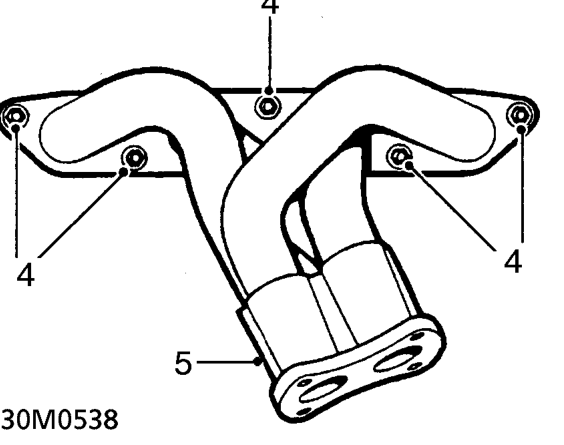

  1. Remove 5 nuts securing exhaust manifold to cylinder head.
  2. Remove exhaust manifold.
  3. Remove and discard exhaust manifold gasket.
