INLET MANIFOLD CHAMBER GASKET - ’K16 WITH VVC’

Service repair no - 30.15.37

Remove

  1. Disconnect battery earth lead.

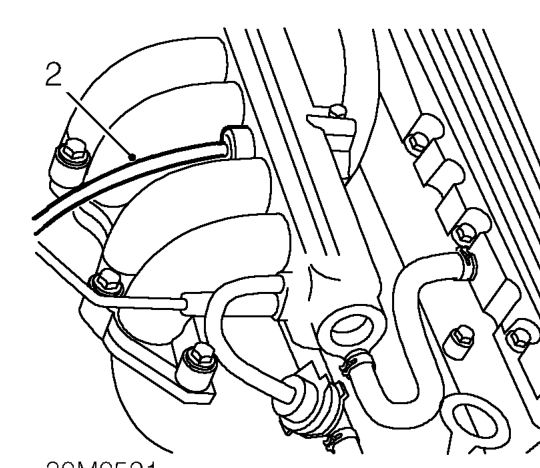

Inlet manifold chamber gasket - ’k16 with vvc’ – Disconnect battery earth lead.
  1. Disconnect brake servo vacuum pipe from manifold chamber.

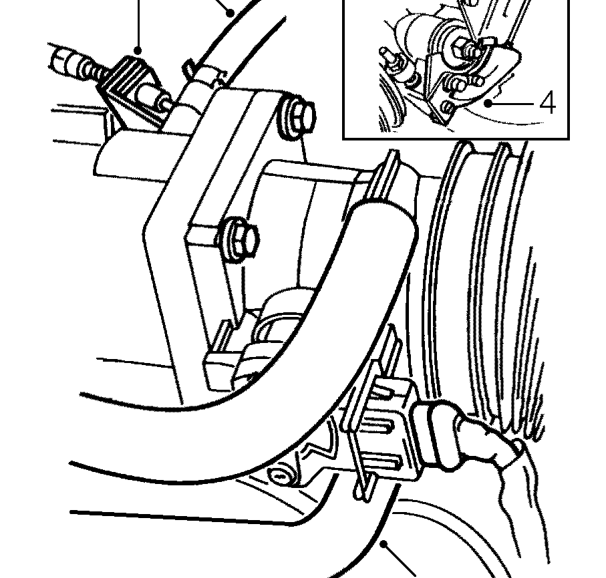

Inlet manifold chamber gasket - ’k16 with vvc’ – Disconnect brake servo vacuum pipe from manifold chamber.
  1. Release throttle cable adjusting nut from abutment bracket.
  2. Release throttle cable from throttle cam.
  3. Release clip and disconnect purge hose from manifold chamber.
  4. Release clip and disconnect breather hose from manifold chamber.

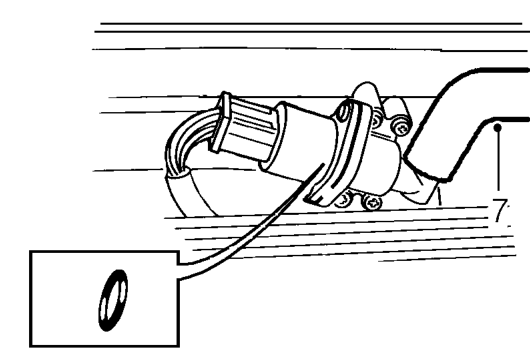

Inlet manifold chamber gasket - ’k16 with vvc’ – Release clip and disconnect breather hose from manifold chamber.
  1. Disconnect hose from IACV.
