INLET MANIFOLD CHAMBER GASKET - ’K8’

Service repair no - 30.15.37

Remove

  1. Disconnect battery earth lead.
Inlet manifold chamber gasket - ’k8’ – Disconnect battery earth lead.

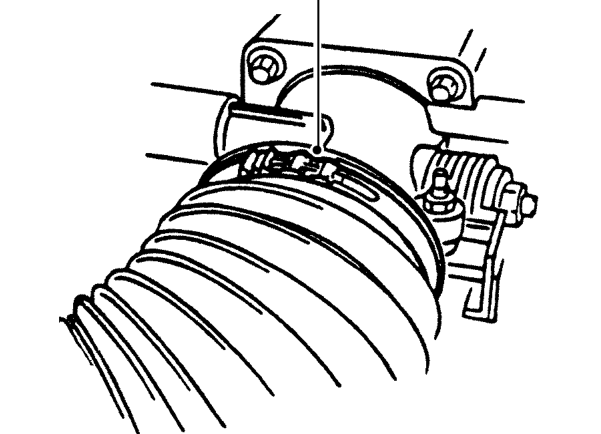

  1. Release clip and disconnect air intake hose from throttle housing.
Inlet manifold chamber gasket - ’k8’ – Release clip and disconnect air intake hose from throttle housing.

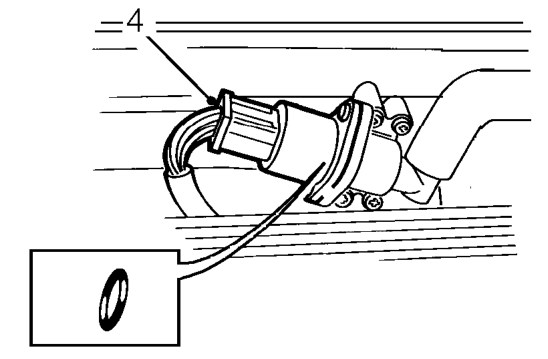

  1. Disconnect multiplug from IACV.
Inlet manifold chamber gasket - ’k8’ – Disconnect multiplug from IACV.

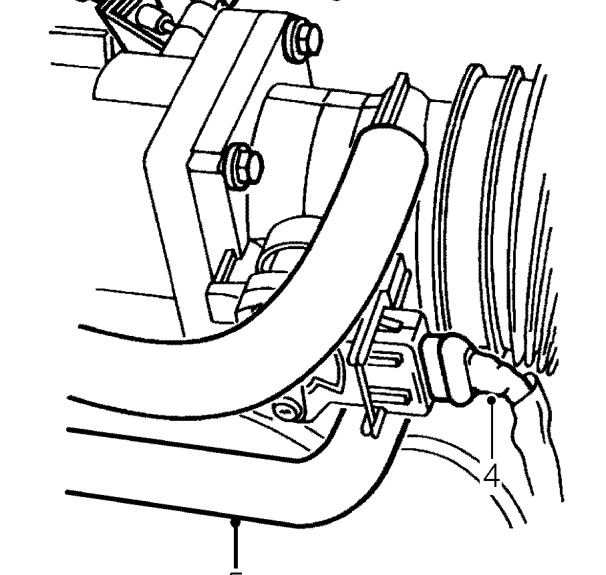

  1. Disconnect multiplug from TP sensor.
  2. Release clip and disconnect breather hose from throttle housing.
  3. Release clip and disconnect purge hose from manifold chamber.
Inlet manifold chamber gasket - ’k8’ – Release clip and disconnect purge hose from manifold chamber.

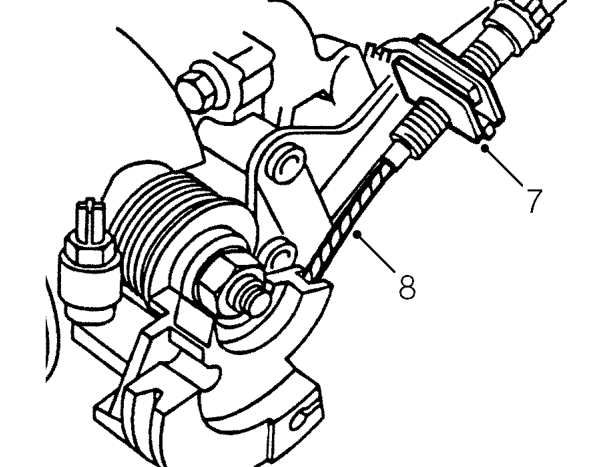

  1. Release throttle cable adjusting nut from abutment bracket.
  2. Disconnect throttle cable from throttle cam.
