TAIL PIPE - ’K’ SERIES

Service repair no - 30.10.22

Remove

  1. Raise vehicle on 4 post ramp.

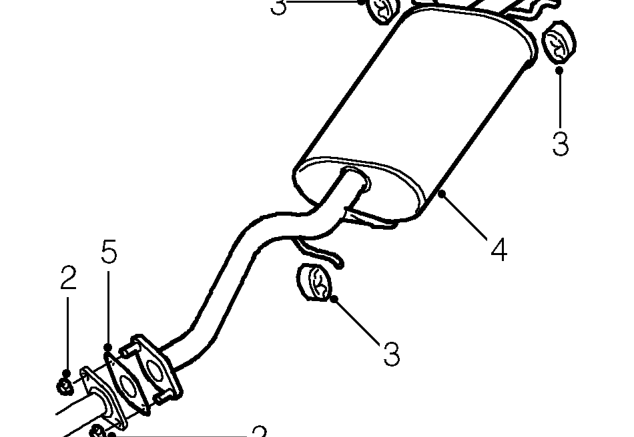

Tail pipe - ’k’ series – Raise vehicle on 4 post ramp.
  1. Remove 2 nuts securing intermediate pipe to tail pipe.
  2. Release 3 rubber mountings securing tail pipe to body.
  3. Remove tail pipe.
  4. Remove and discard gasket.

Refit

  1. Clean intermediate pipe and tail pipe mating faces.
  2. Fit new gasket to intermediate pipe flange studs.
  3. Fit tail pipe and secure rubber mountings to body.
  4. Fit nuts to flange and tighten to 50 Nm.
  5. Lower vehicle.

TAIL PIPE - ’L’ SERIES

Service repair no - 30.10.22

Remove

  1. Raise vehicle on 4 post ramp.

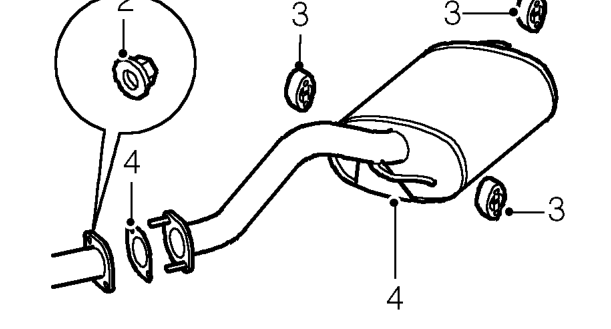

Tail pipe - ’l’ series – Raise vehicle on 4 post ramp.
  1. Remove 2 nuts securing intermediate pipe to tail pipe.
  2. Release 3 rubber mountings securing tail pipe to body.
  3. Remove tail pipe.
  4. Remove and discard gasket.

Refit

  1. Clean intermediate pipe and tail pipe mating faces.
  2. Fit new gasket to intermediate pipe flange studs.
  3. Fit tail pipe and secure rubber mountings to body.
  4. Fit nuts to flange and tighten to 50 Nm.
  5. Lower vehicle.
