Rover 200 Workshop Manual (1995-1999)15 · Manifold & exhaust systems
15 · Engine

Exhaust manifold gasket - ’K16’ with air conditioning

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Exhaust manifold gasket - ’K16’ with air conditioning
Manifold & exhaust systemsExhaust manifold gasket - ’K16’ with air conditioning · page 1 of 2

Refit

  1. Clean manifold mating faces.
  2. Fit new gasket to manifold studs.

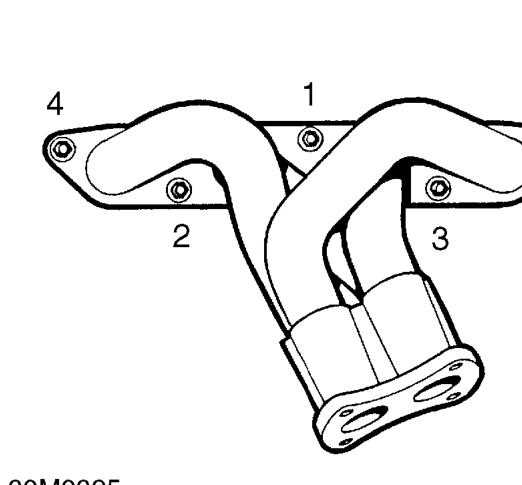

Fit new gasket to manifold studs.
  1. Position manifold on studs. Fit nuts and tighten in the sequence illustrated to 45 Nm.
  2. Connect HO2S multiplug to harness and secure to bracket.
  3. Fit front pipe to manifold gasket, See this section.

EXHAUST MANIFOLD GASKET - ’K16’ WITH AIR CONDITIONING

Service repair no - 30.15.12.20

Remove

  1. Remove alternator. See ELECTRICAL, Repairs.
  2. Remove front pipe to manifold gasket. See this section.

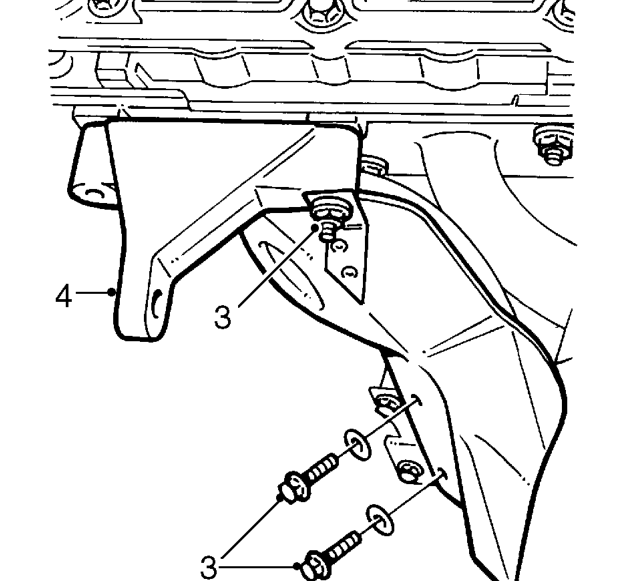

Exhaust manifold gasket - ’k16’ with air conditioning – Remove front pipe to manifold gasket. See this section.
  1. Remove nut and 2 bolts securing alternator heat shield and remove heat shield.
  2. Remove alternator top mounting bracket.
