Manifold & exhaust systemsFront pipe - ’K16’

FRONT PIPE - ’K16’

Service repair no - 30.10.09

Remove

  1. Raise vehicle on a 4 post ramp.
Front pipe - ’k16’ – Raise vehicle on a 4 post ramp.

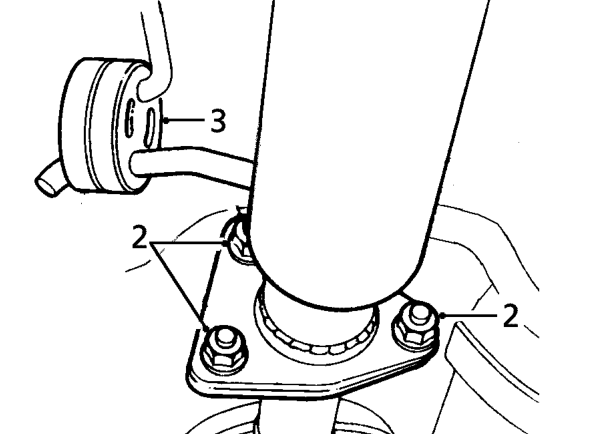

  1. Remove 3 nuts securing front pipe to catalytic converter.
  2. Release mounting rubber from bracket.
Front pipe - ’k16’ – Release mounting rubber from bracket.

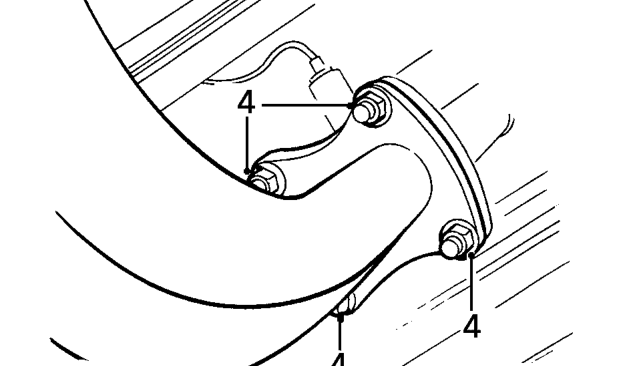

  1. Remove 4 flange nuts securing front pipe to manifold.
  2. Release front pipe from manifold and remove from catalytic converter.
  3. Remove flange gaskets.

Refit

  1. Clean pipe flanges.
  2. Fit new gasket to catalytic converter flange.
  3. Fit front pipe to catalytic converter, fit flange nuts but DO NOT tighten.
  4. Fit new gasket to manifold flange.
  5. Fit front pipe to manifold flange, fit nuts and tighten to 50 Nm.
  6. Tighten nuts securing front pipe to catalytic converter to 50 Nm.
  7. Secure front pipe rubber mounting to bracket on body.
  8. Lower vehicle.
