INLET MANIFOLD - ’L’ SERIES WITHOUT INTERCOOLER

Service repair no - 30.15.02

Remove

  1. Remove inlet and exhaust manifold assembly. See this section.
Inlet manifold - ’l’ series without intercooler – Remove inlet and exhaust manifold assembly. See this section.
  1. Remove 3 bolts securing inlet manifold to intake pipe.
  2. Remove inlet manifold and discard gasket.

Refit

  1. Clean mating faces of inlet manifold and intake pipe.
  2. Using a new gasket, fit inlet manifold to intake pipe.
  3. Fit bolts securing inlet manifold to intake pipe and tighten to 25 Nm.
  4. Fit inlet and exhaust manifold assembly. See this section.

INLET MANIFOLD GASKET - ’K8’

Service repair no - 30.15.08

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
Inlet manifold gasket - ’k8’ – Drain cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.

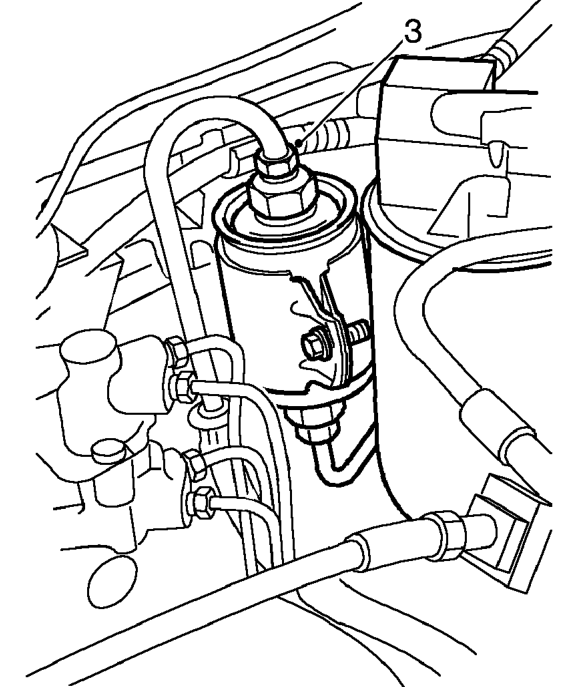

  1. Position absorbent cloth around fuel filter outlet union. Loosen union to relieve fuel pressure. Retighten union to 30 Nm.

CAUTION: To prevent damage to fuel system pipes and components, use two spanners when loosening or tightening unions.
