Inlet manifold - ’l’ series without intercooler (page 3 of 4)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Manifold & exhaust systemsInlet manifold - ’l’ series without intercooler · page 3 of 4

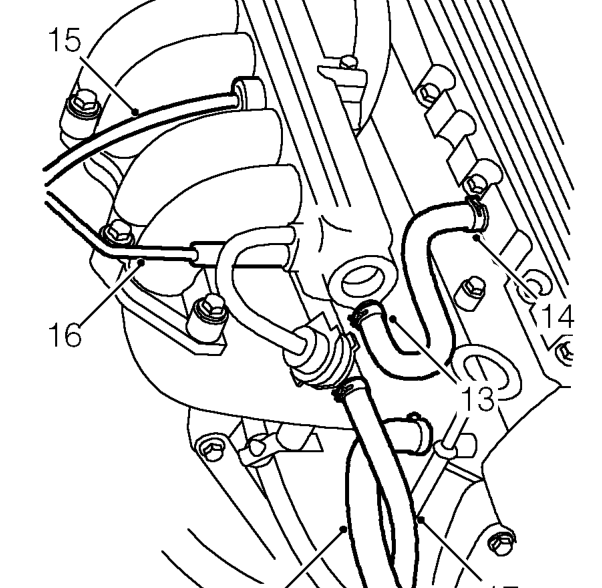

Diagram
  1. Disconnect breather hose from inlet manifold.
  2. Release clip and disconnect breather hose from camshaft cover.
  3. Depress plastic collar and disconnect brake servo hose from inlet manifold.
  4. Disconnect ECM vacuum hose from inlet manifold.
  5. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

  1. Release fuel return hose from 2 clips on underside of inlet manifold.
  2. Loosen clip and disconnect coolant hose from inlet manifold.

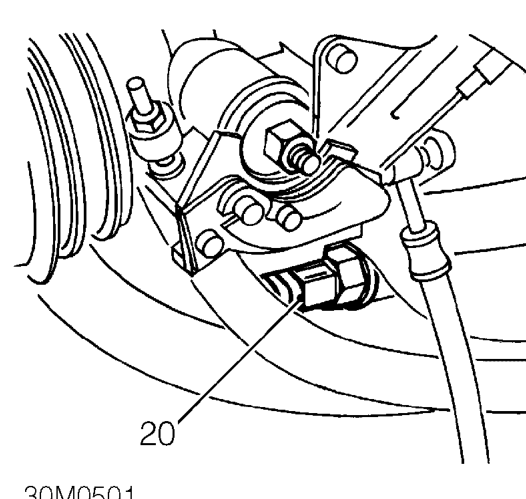

Loosen clip and disconnect coolant hose from inlet manifold.
  1. Disconnect multiplug from IAT sensor.

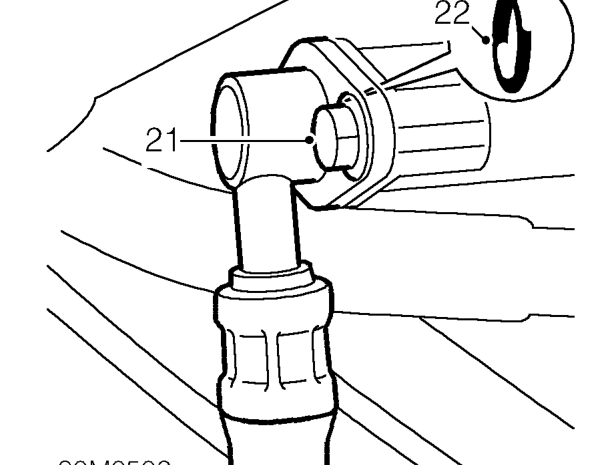

Disconnect multiplug from IAT sensor.
  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail, remove and discard ’O’ ring.

CAUTION: Plug the connections.

  1. Remove bolt securing support stay to inlet manifold.
