Inlet manifold - ’l’ series without intercooler (page 2 of 4)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Manifold & exhaust systemsInlet manifold - ’l’ series without intercooler · page 2 of 4
Diagram

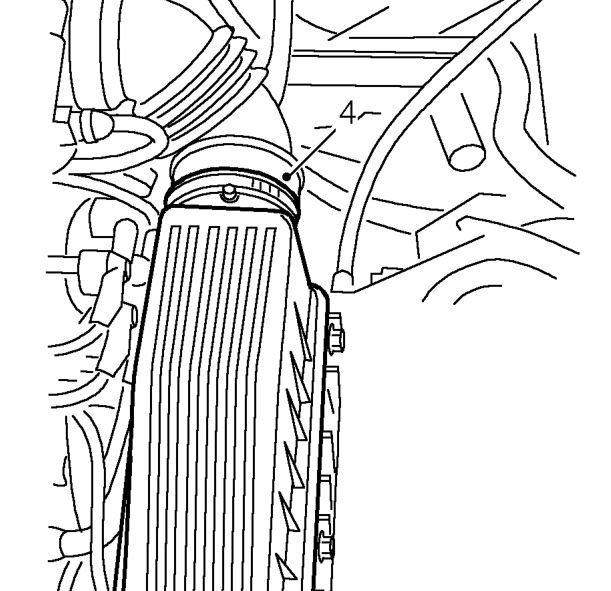

  1. Remove clip and disconnect air intake hose from air cleaner.
Remove clip and disconnect air intake hose from air cleaner.
  1. Release clip and disconnect purge hose from inlet manifold.

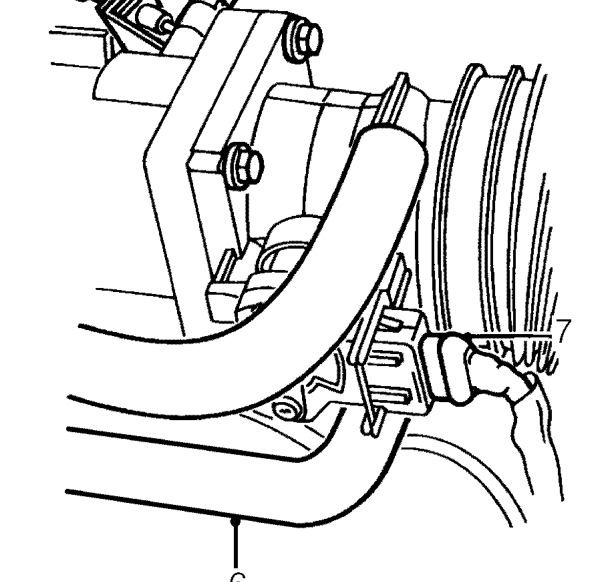

  2. Release clip and disconnect breather hose from throttle body.
Release clip and disconnect breather hose from throttle body.
  1. Disconnect multiplug from TP sensor.

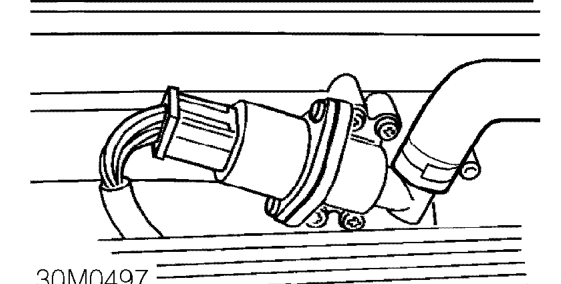

  2. Release clip and disconnect hose from IACV.

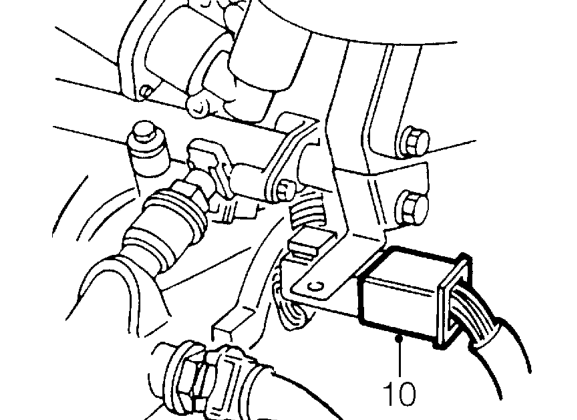

  3. Disconnect multiplug from IACV.
Disconnect multiplug from IACV.
  1. Release injector harness multiplug from bracket and disconnect multiplug.
  2. Remove 4 bolts securing throttle body to inlet manifold. Remove throttle body and place aside. Collect multiplug bracket.
  3. Remove and discard ’O’ ring from throttle body.
