FRONT PIPE TO MANIFOLD GASKET - ’L’ SERIES

Service repair no - 30.10.26

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

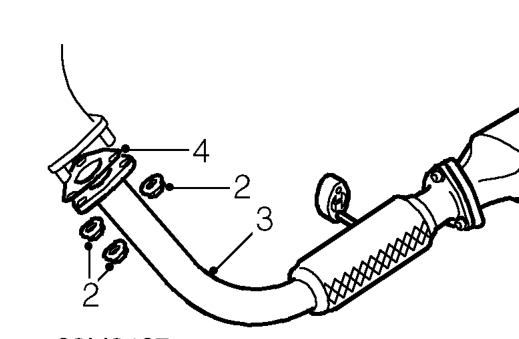

Front pipe to manifold gasket - ’l’ series – Raise front of vehicle.
  1. Remove 3 nuts securing front pipe to manifold.
  2. Release front pipe from manifold.
  3. Remove gasket from manifold flange.

Refit

  1. Clean manifold and front pipe flanges.
  2. Fit new gasket to manifold flange.
  3. Position front pipe to manifold, fit nuts and tighten to 50 Nm.
  4. Remove stand(s) and lower vehicle.

TAIL PIPE HEAT SHIELD

Service repair no - 30.10.44

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

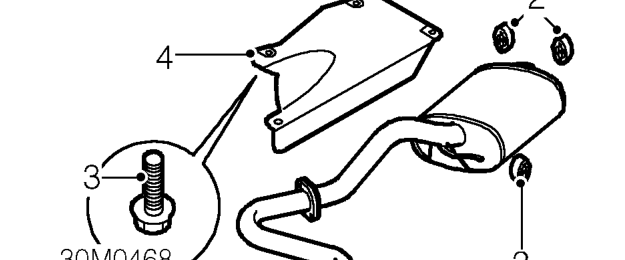

Tail pipe heat shield – Raise rear of vehicle.
  1. Release exhaust tailpipe from 3 mounting rubbers.
  2. Remove 4 bolts securing heat shield to body.
  3. Remove tail pipe heat shield.

Refit

  1. Position tail pipe heat shield, fit bolts and tighten to 9 Nm.
  2. Secure exhaust tailpipe to mounting rubbers.
  3. Remove stand(s) and lower vehicle.
