Rover 200 Workshop Manual (1995-1999)15 · Manifold & exhaust systems
15 · Engine

Front pipe to manifold gasket - ’K8’

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Front pipe to manifold gasket - ’K8’
Manifold & exhaust systemsFront pipe to manifold gasket - ’K8’

FRONT PIPE TO MANIFOLD GASKET - ’K8’

Service repair no - 30.10.26

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

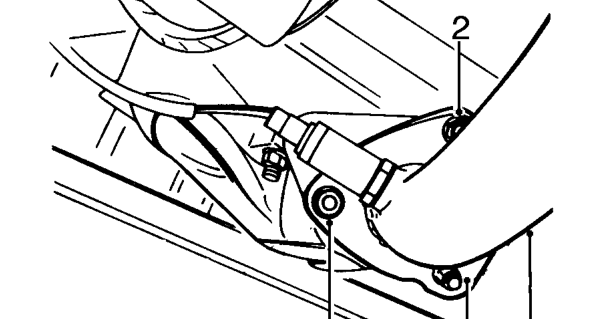

Front pipe to manifold gasket - ’k8’ – Raise front of vehicle.
  1. Remove 3 nuts securing front pipe to manifold.
  2. Release front pipe from manifold.
  3. Remove gasket from manifold flange.

Refit

  1. Clean manifold and front pipe flanges.
  2. Fit new gasket to manifold flange.
  3. Position front pipe to manifold, fit nuts and tighten to 50 Nm.
  4. Remove stand(s) and lower vehicle.

FRONT PIPE TO MANIFOLD GASKET - ’K16’

Service repair no - 30.10.26

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

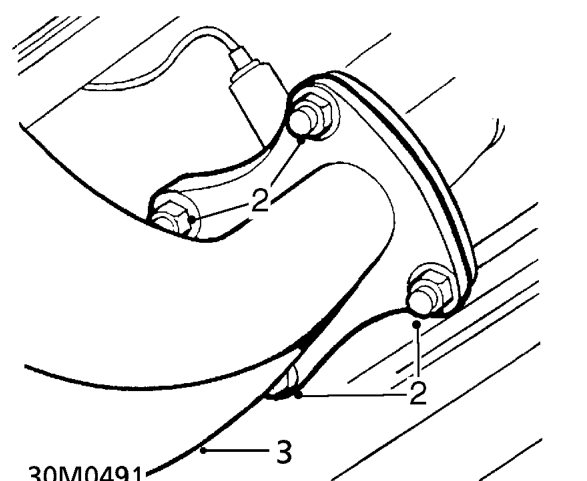

Front pipe to manifold gasket - ’k16’ – Raise front of vehicle.
  1. Remove 4 nuts securing front pipe to manifold.
  2. Release front pipe from manifold.
  3. Remove gasket from manifold flange.

Refit

  1. Clean manifold and front pipe flanges.
  2. Fit new gasket to manifold flange.
  3. Position front pipe to manifold, fit nuts and tighten to 50 Nm.
  4. Remove stand(s) and lower vehicle.
