22 · Steering & suspension

Power steering rack - ’k’ series (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
SteeringPower steering rack - ’k’ series · page 2 of 3
Diagram

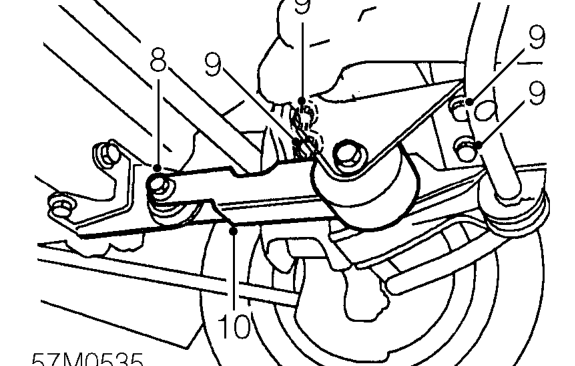

  1. Remove bolt securing engine steady bar to engine.
  2. Move steady bar aside and remove 4 bolts securing steady bar mounting bracket to rear beam.
  3. Remove steady bar and mounting bracket.
  4. Position container beneath steering rack.
Position container beneath steering rack.

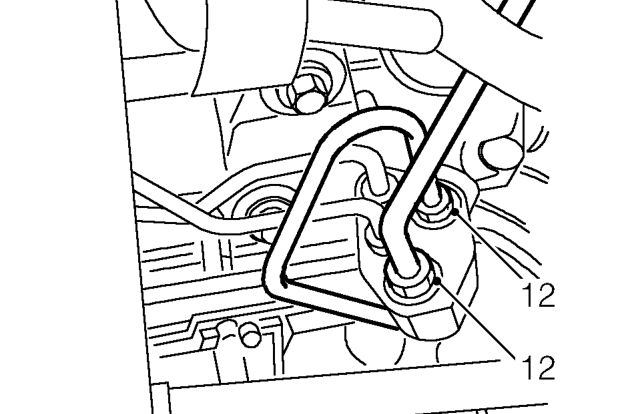

  1. Disconnect feed and return pipe unions from steering rack.

CAUTION: Plug the connections.

Disconnect feed and return pipe unions from steering rack.

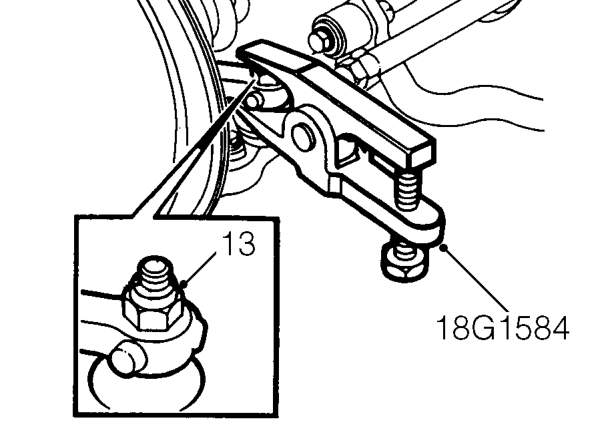

  1. Remove nuts securing LH and RH track rod ends to front hubs, break taper joints using tool 18G 1584. Discard nuts.
  2. Note number of threads exposed from each track rod end locknut for reference.
Note number of threads exposed from each track rod end locknut for reference.

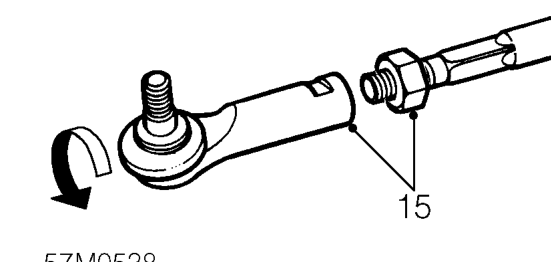

  1. Loosen locknuts and remove track rod ends from steering rack.
