Front door latch (page 2 of 2)

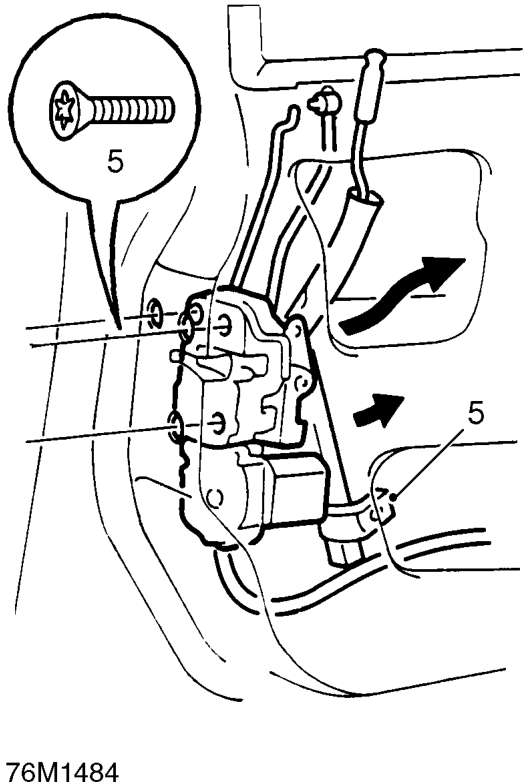

5. Using a Torx bit remove 3 screws securing latch to door, push rear channel forward and remove latch from door.

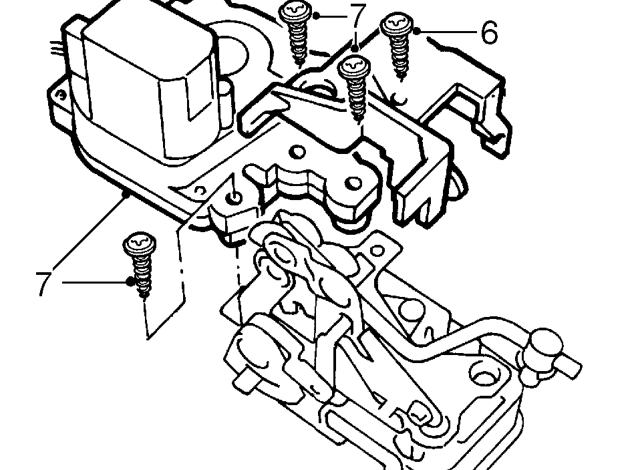

6. Using a Torx bit remove screw securing latch cover.
7. Remove 3 screws lock to latch, remove lock.

NOTE: Take care not to disturb setting of threaded link rod.

Refit

1. Position lock and cover to latch, and tighten screws.
2. Position latch to door, tighten Torx screws to 6 Nm.
3. Align rear channel, tighten bolt to 8 Nm.
4. Connect lock multiplug, secure harness clips to door.
5. Connect inside handle rod and secure clip.
6. Refit front door outside handle. See this section.
