Fascia panel (page 2 of 3)
- Make
- Rover
- Model
- 400 Workshop Manual
- Year
- 1995–2000
- Section
- Interior trim components
BodyFascia panel · page 2 of 3

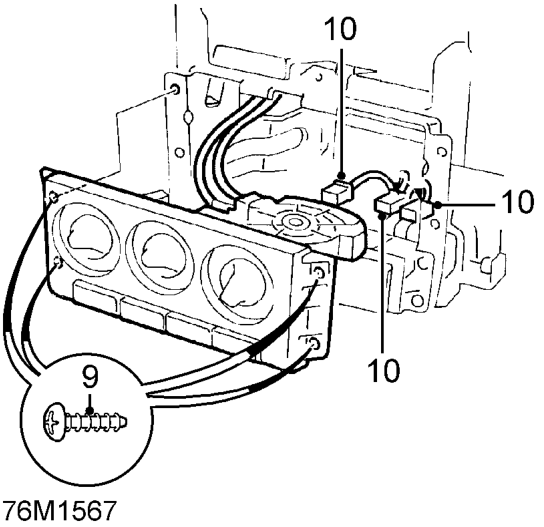

- Remove 4 screws securing heater control panel to fascia.
- Disconnect 3 multiplugs from heater control switches and remove control panel.

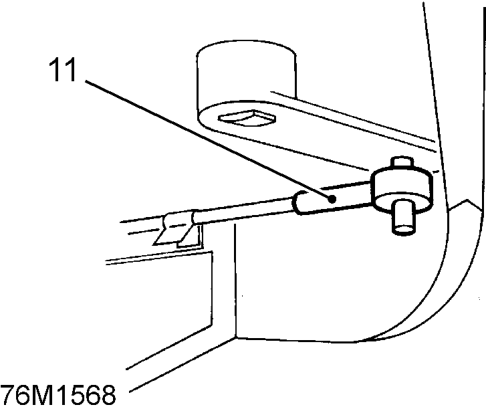

- Disconnect fascia centre vent cable from heater.

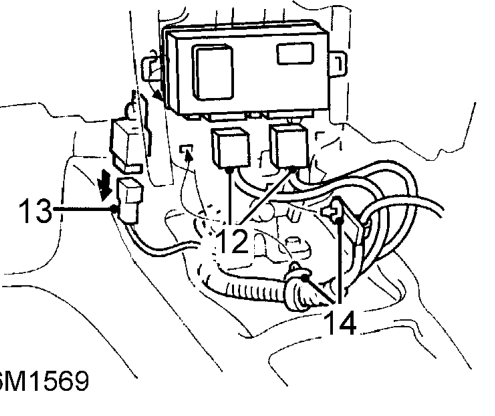

- Disconnect 2 multiplugs from alarm ECU.
- Disconnect multiplug from starter relay.

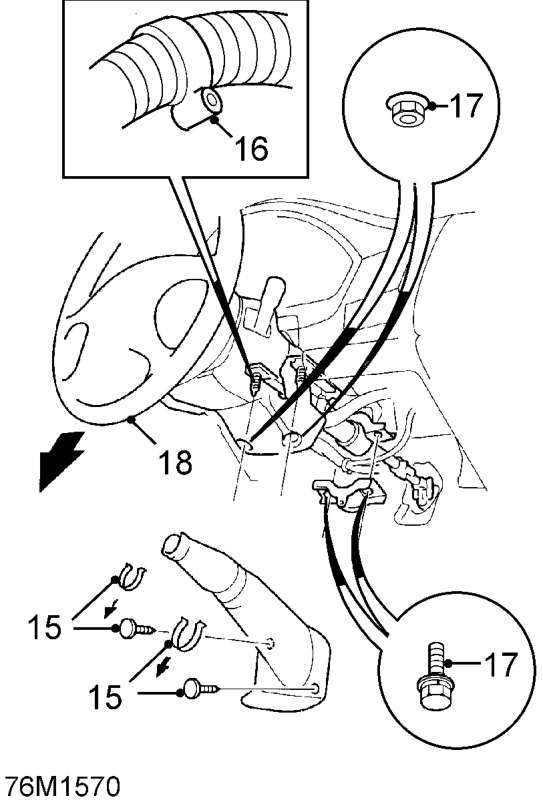

- Release clips securing harness to fascia support panel.
- Remove 2 studs and 2 clips securing steering column lower cover.Remove cover.
- Release harness clip from steering column stud.
- Remove 2 nuts and 2 bolts securing steering column to body.
- Lower steering column and collect column clamp.
