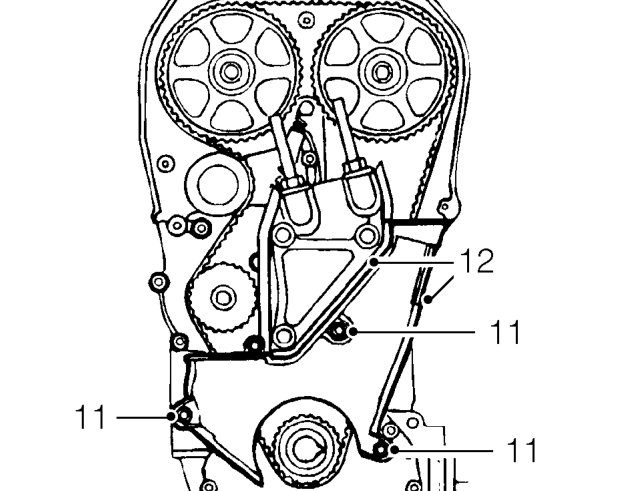

11. Remove 3 bolts securing timing belt lower cover to engine.
12. Remove timing belt lower cover and rubber seal.

Refit

1. Clean timing belt lower cover.
2. Fit timing belt lower cover ensuring correct position of rubber seal.
3. Fit bolts securing timing belt lower cover to engine and tighten to 5 Nm.

Engines with manual PAS pump drive belt tensioner

4. Position drive belt tension adjuster to power steering pump bracket, fit bolts and tighten to 25 Nm.
5. Fit power steering pump tensioner pulley and secure with washer and nut.

All engines

6. Align RH torque mounting bracket to engine, fit 3 bolts and tighten to 60 Nm.
7. Fit crankshaft front pulley. See this section.
8. Fit timing belt upper cover. See this section.
9. Remove stand(s) and lower vehicle.
10. Connect battery earth lead.
