CYLINDER HEAD GASKET WITH AIR CONDITIONING FITTED

Service repair no - 12.29.02.20

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove and discard camshaft timing belt. See this section.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.

Engines fitted with manual timing belt tensioner

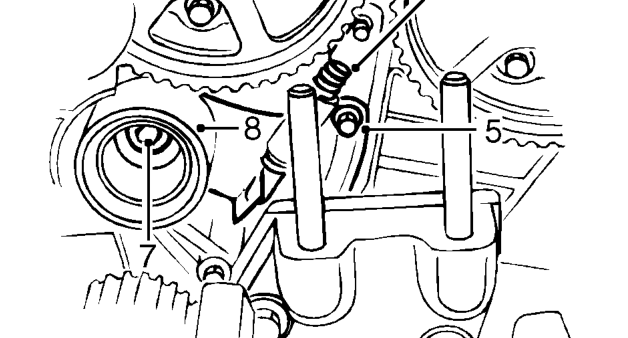

Engines fitted with manual timing belt tensioner – Drain cooling system. See COOLING SYSTEM, Adjustments.
  1. Remove bolt securing camshaft timing belt tensioner backplate to cylinder head.
  2. Disconnect camshaft timing belt tensioner spring from stud on cylinder head.
  3. Remove Allen bolt securing camshaft timing belt tensioner pulley to cylinder head.
  4. Remove camshaft timing belt tensioner.

All engines

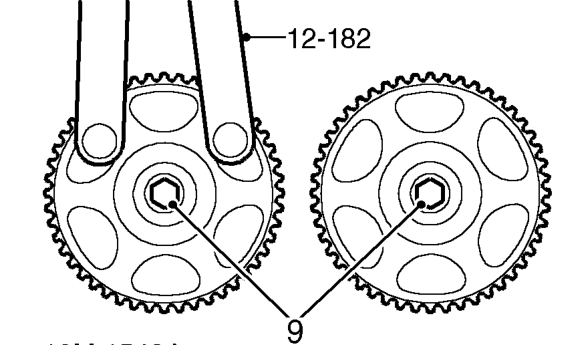

All engines – Remove camshaft timing belt tensioner.
  1. Restrain camshaft gears using tool 12-182 and remove bolts and washers securing camshaft gears to camshafts.
  2. Remove camshaft gear locking tool 18G 1570.
  3. Mark camshaft gears for identification when refitting.
  4. Remove 2 camshaft gears.
All engines – Remove 2 camshaft gears.
  1. Remove 4 bolts securing camshaft timing belt rear cover to cylinder head and block.
  2. Remove camshaft timing belt rear cover.
