Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Crankshaft front pulley

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Crankshaft front pulley
Engine - K SeriesCrankshaft front pulley

CRANKSHAFT FRONT PULLEY

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove alternator drive belt. See ELECTRICAL, Repairs.
  2. Remove starter motor. See ELECTRICAL, Repairs.
Crankshaft front pulley – Remove starter motor. See ELECTRICAL, Repairs.

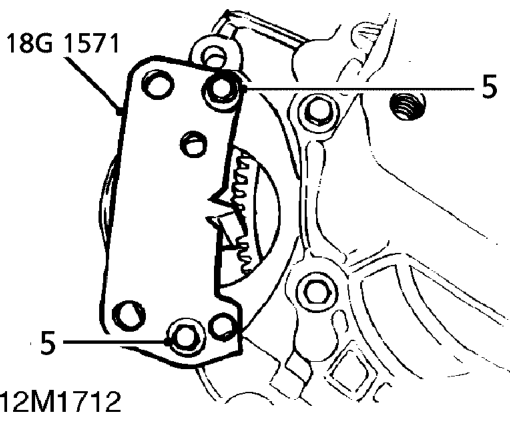

  1. Fit flywheel locking tool 18G 1571 to flywheel housing and secure with 2 bolts.
Crankshaft front pulley – Fit flywheel locking tool 18G 1571 to flywheel housing and secure with 2 bolts.

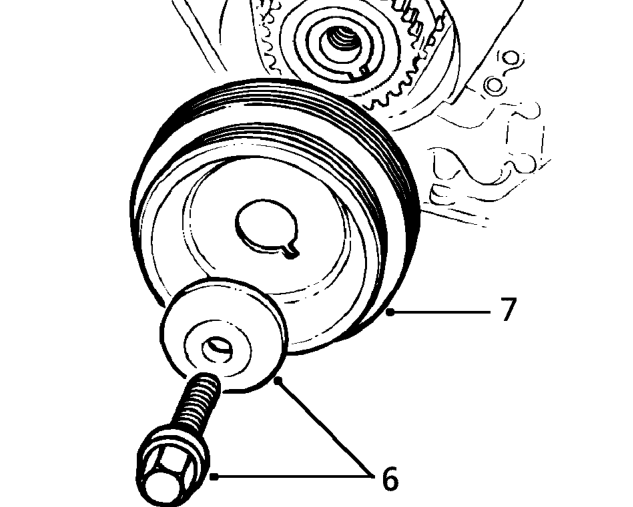

  1. Remove bolt securing pulley to crankshaft and collect washer.
  2. Remove crankshaft pulley.
