Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Crankshaft front oil seal

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Crankshaft front oil seal
Engine - K SeriesCrankshaft front oil seal

Refit

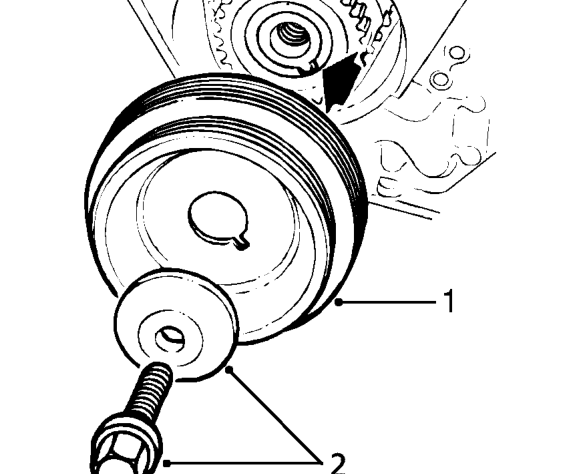

Diagram
  1. Fit crankshaft pulley to crankshaft gear ensuring that indent on pulley locates over lug on gear (arrowed in illustration).
  2. Fit washer and bolt securing crankshaft pulley to crankshaft and tighten to 205 Nm.
  3. Remove 2 bolts securing tool 18G 1571 to flywheel housing and remove tool.
  4. Fit starter motor. See ELECTRICAL, Repairs.
  5. Fit alternator drive belt. See ELECTRICAL, Repairs.
  6. Remove stand(s) and lower vehicle.
  7. Connect battery earth lead.

CRANKSHAFT FRONT OIL SEAL

Service repair no - 12.21.14

Remove

  1. Remove camshaft timing belt. See this section.
Crankshaft front oil seal – Remove camshaft timing belt. See this section.

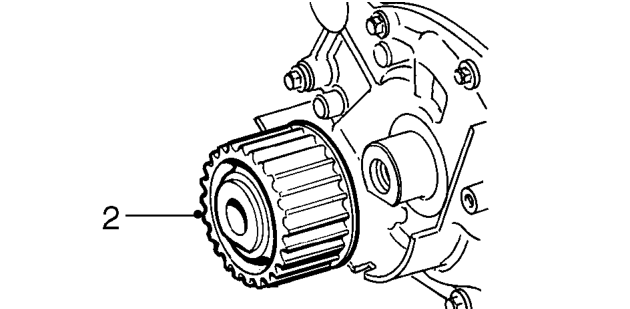

  1. Remove crankshaft gear.
Crankshaft front oil seal – Remove crankshaft gear.

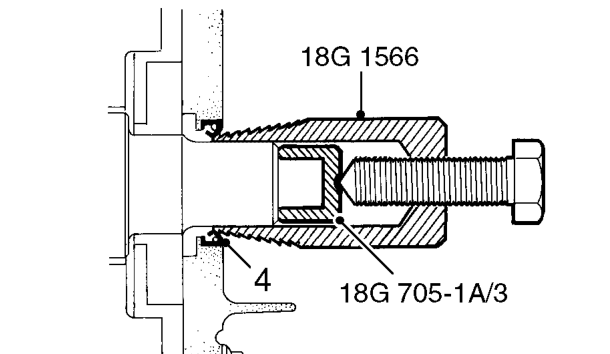

  1. Fit thrust button, tool 18G 705-1A/3 to end of crankshaft.
  2. Ensure bore of tool 18G 1566 is free from burrs.
  3. Screw tool 18G 1566 into crankshaft front oil seal.
  4. Tighten centre bolt of tool 18G 1566 to remove seal.
  5. Discard crankshaft front oil seal.
  6. Remove tool 18G 705-1A/3.
