Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Oil pump

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Oil pump
Engine - K SeriesOil pump

Refit

  1. Fit new gasket and dipstick tube to cylinder block.
  2. Fit bolts securing dipstick tube to cylinder block and tighten to 10 Nm.
  3. Fit bolt securing dipstick tube and thermostat housing to cylinder block and tighten to 9 Nm.
  4. Fit dipstick.

NOTE: Set PAS pump bolt distance pieces in PAS pump bracket back approximately 3 mm to aid fitting PAS pump.

  1. Fit PAS pump bracket, fit bolts and tighten to 45 Nm.
  2. Locate PAS pump to bracket, fit bolts and tighten to 25 Nm.
  3. Fit PAS pump pulley and fit bolts.
  4. Fit PAS pump drive belt. See STEERING, Repairs.
  5. Tighten PAS pump pulley bolts to 9 Nm.

OIL PUMP

Service repair no - 12.60.26

Remove

  1. Remove camshaft timing belt. See this section.
  2. Remove crankshaft gear.

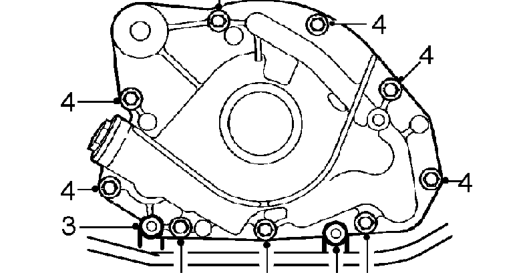

Oil pump – Remove crankshaft gear.
  1. Remove 2 bolts securing engine harness to oil pump.
  2. Remove and discard 9 bolts securing oil pump to cylinder block.

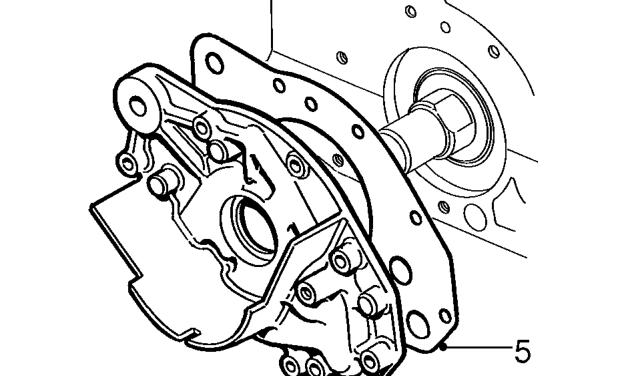

Oil pump – Remove and discard 9 bolts securing oil pump to cylinder block.
  1. Remove oil pump and discard gasket.
