OIL FILTER

Service repair no - 12.60.04

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

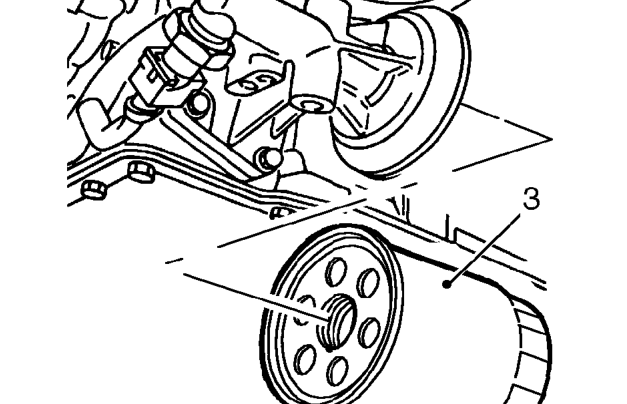

Oil filter – Raise front of vehicle.
  1. Clean area around filter head and place a container beneath engine.
  2. Using a strap wrench, unscrew and discard filter.

Refit

  1. Clean mating face of filter head.
  2. Lubricate sealing ring of new filter with clean engine oil.
  3. Fit new filter and tighten by hand until it seats then tighten a further half turn.
  4. Remove stand(s) and lower vehicle.
  5. Top-up engine with oil to specification 10w/40 until level is correct.
  6. Start and run engine and check for leaks.
  7. Stop engine, wait a few minutes , then check oil level. Top-up if necessary.

DIPSTICK TUBE

Service repair no - 12.60.09

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Disconnect battery earth lead.

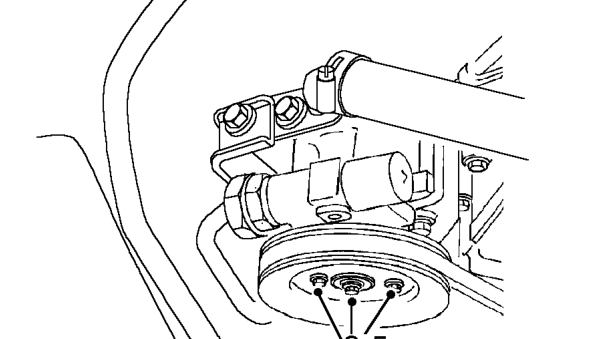

Dipstick tube – Disconnect battery earth lead.
  1. Loosen 3 bolts securing PAS pump pulley.
  2. Remove PAS pump drive belt. See STEERING, Repairs.
  3. Remove PAS pump pulley bolts and remove pulley.

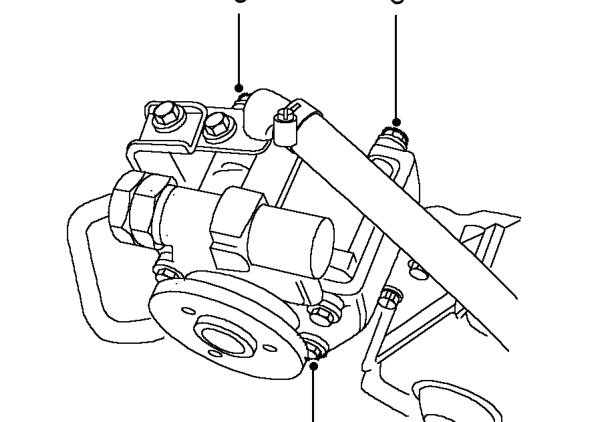

Dipstick tube – Remove PAS pump pulley bolts and remove pulley.
  1. Remove 3 bolts securing PAS pump.
  2. Release PAS pump from bracket and move aside.
