LH engine mounting

LH ENGINE MOUNTING

Service repair no - 12.45.30

Remove

1. Disconnect battery earth lead.
2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
3. Fit wooden block to jack and position jack to support engine.

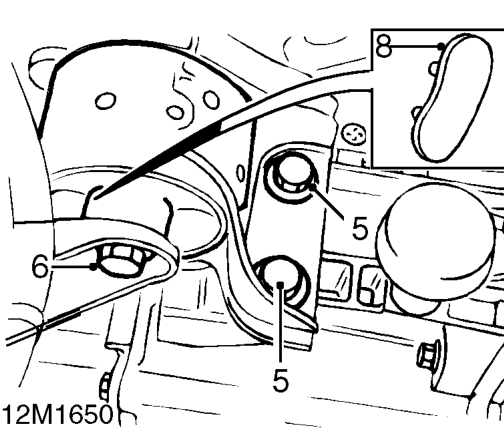

4. Release evaporative emission canister from mounting bracket.

5. Remove 2 bolts securing LH engine mounting to gearbox.
6. Remove through bolt securing LH engine mounting to body.
7. Remove LH engine mounting.
8. Remove 2 mounting rubbers from body.

Refit

1. Fit 2 mounting rubbers to bracket on body.
2. Fit LH engine mounting to body and gearbox.
3. Fit through bolt securing LH engine mounting to body but do not tighten.
4. Align gearbox to engine mounting, fit 2 bolts and tighten to 80 Nm.
5. Tighten through bolt, LH engine mounting to body, to 75 Nm.
6. Secure evaporative emission canister to mounting bracket.
7. Lower jack supporting power unit, and remove from beneath vehicle.
8. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
9. Connect battery earth lead.

RH ENGINE MOUNTING

Service repair no - 12.45.31

Remove

1. Disconnect battery earth lead.

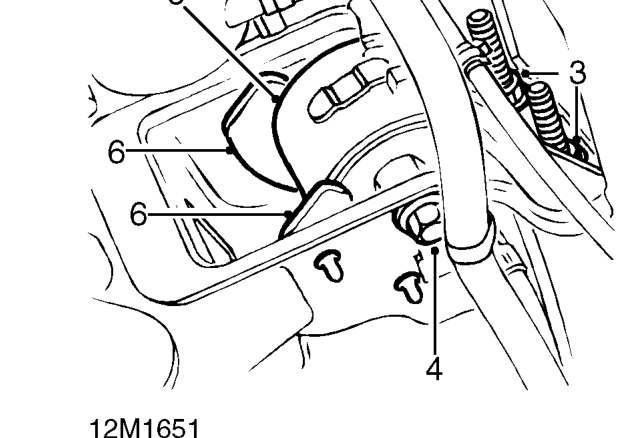

2. Fit wooden block to jack and position jack to support engine.

3. Remove and discard 2 nuts securing RH engine mounting to engine.
4. Remove through bolt securing RH engine mounting to body.
5. Remove RH engine mounting.
6. Remove 2 mounting rubbers from body.

Refit

1. Fit 2 mounting rubbers to bracket on body.
2. Fit RH engine mounting to body and engine.
3. Fit through bolt securing RH engine mounting to body but do not tighten.
4. Fit 2 new nuts securing RH engine mounting to engine and tighten to 100 Nm.
5. Tighten through bolt, RH engine mounting to body, to 75 Nm.
6. Lower jack supporting power unit, and remove from beneath vehicle.
7. Connect battery earth lead.
