Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Cylinder head gasket without air conditioning fitted

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Cylinder head gasket without air conditioning fitted
Engine - K SeriesCylinder head gasket without air conditioning fitted

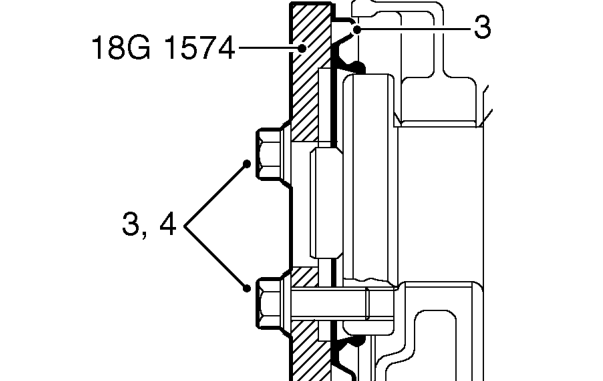

Diagram
  1. Position oil seal to cylinder block and fit oil seal replacer tool 18G 1574, retain tool using 3 slave bolts.
  2. Evenly tighten oil seal replacer bolts to press oil seal squarely into cylinder block.
  3. Leave oil seal replacer tool and oil seal in clamped position for one minute.
  4. Remove oil seal replacer tool.
  5. Allow sealant to cure for a minimum of 30 minutes before topping-up oil or rotating crankshaft.
  6. Fit flywheel. See this section.

CYLINDER HEAD GASKET WITHOUT AIR CONDITIONING FITTED

Service repair no - 12.29.02

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove and discard camshaft timing belt. See this section.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.

Engines fitted with manual timing belt tensioner

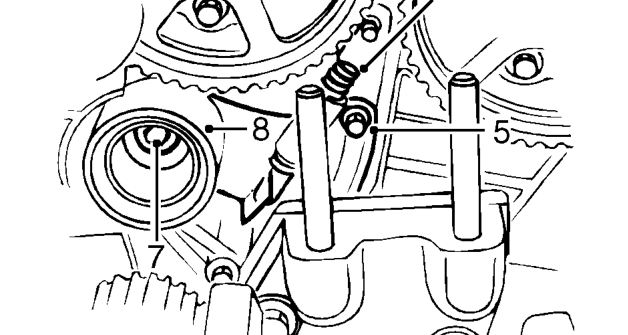

Engines fitted with manual timing belt tensioner – Drain cooling system. See COOLING SYSTEM, Adjustments.
  1. Remove bolt securing camshaft timing belt tensioner backplate to cylinder head.
  2. Disconnect camshaft timing belt tensioner spring from stud on cylinder head.
  3. Remove Allen bolt securing camshaft timing belt tensioner pulley to cylinder head.
  4. Remove camshaft timing belt tensioner.
