Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Inlet camshaft rear oil seal

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Inlet camshaft rear oil seal
Engine - K SeriesInlet camshaft rear oil seal

INLET CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.10

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove distributor cap. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Inlet camshaft rear oil seal – Remove distributor cap. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

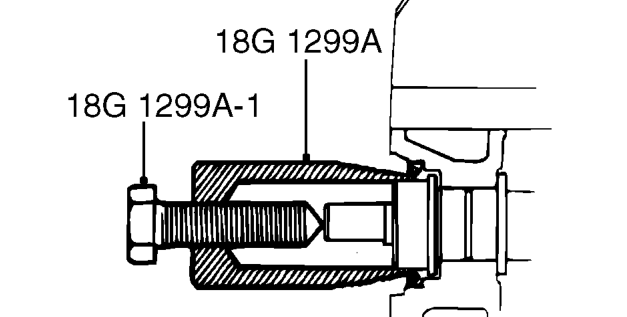

  1. Screw tool 18G 1299A into camshaft rear oil seal.
  2. Tighten centre bolt, tool 18G 1299A-1 , to remove seal.
  3. Remove camshaft oil seal.

Refit

  1. Clean sealing area of cylinder head and camshaft carrier, ensuring all traces of rubber are removed. DO NOT use a scraper as this may damage sealing surfaces.
Inlet camshaft rear oil seal – Clean sealing area of cylinder head and camshaft carrier, ensuring all traces of rubber ar

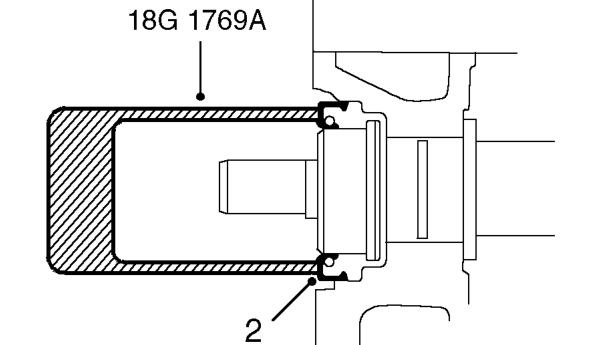

  1. Using tool 18G 1769A, fit new camshaft oil seal.

NOTE: This oil seal is coloured RED.

CAUTION: Oil seal must be fitted dry. Do not use tool 18G 1769.

  1. Fit distributor cap. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Fit air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Connect battery earth lead.
