Engine - K SeriesOil pressure switch
  1. Check that pointer is still correctly aligned with index wire.
  2. Fit camshaft timing belt upper cover. See this section.
  3. Fit underbelly panel. See BODY, Exterior fittings.
  4. Fit road wheel and tighten nuts to correct torque.
  5. Remove stand(s) and lower vehicle.
  6. Connect battery earth lead.

OIL PRESSURE SWITCH

Service repair no - 12.60.50

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Position drain tin below engine oil filter to collect spillage.

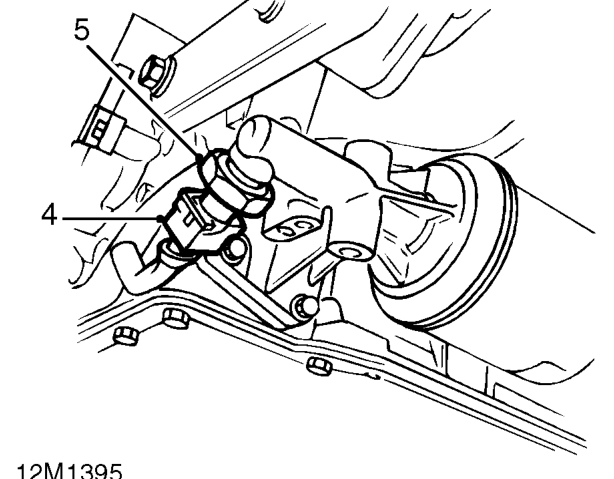

Oil pressure switch – Position drain tin below engine oil filter to collect spillage.
  1. Disconnect multiplug from oil pressure switch.
  2. Remove oil pressure switch.

Refit

  1. Clean oil pressure switch threads.
  2. Fit oil pressure switch and tighten to 12 Nm.
  3. Connect multiplug to oil pressure switch.
  4. Remove stand(s) and lower vehicle.
  5. Top-up engine oil. See MAINTENANCE.
  6. Connect battery earth lead.
