Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

All engines

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › All engines
Engine - K SeriesAll engines · page 1 of 4

All engines

All engines

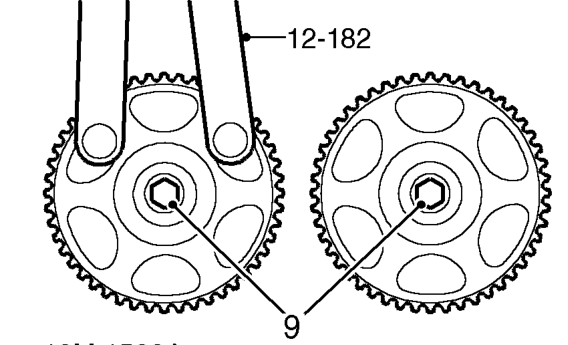

  1. Restrain camshaft gears using tool 12-182 and remove bolts and washers securing camshaft gears to camshafts.
  2. Remove camshaft gear locking tool 18G 1570.
  3. Mark camshaft gears for identification when refitting.
  4. Remove 2 camshaft gears.
All engines – Remove 2 camshaft gears.

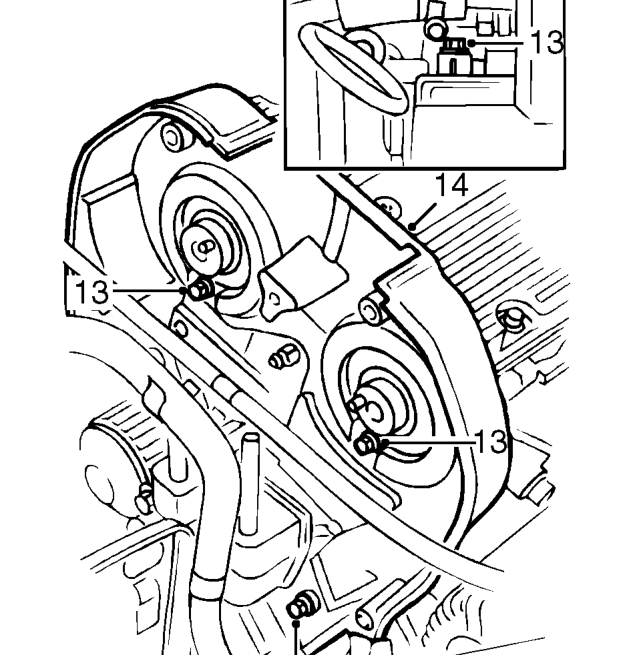

  1. Remove 4 bolts securing camshaft timing belt rear cover to cylinder head and block.
  2. Remove camshaft timing belt rear cover.
All engines – Remove camshaft timing belt rear cover.

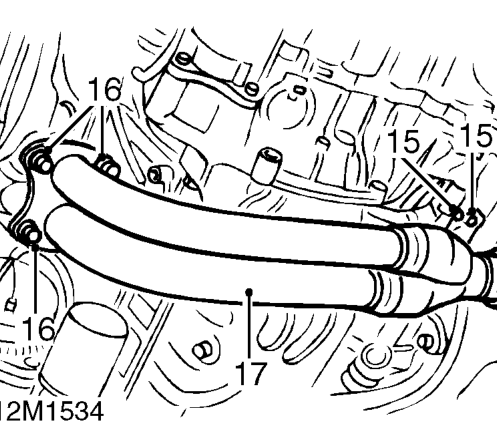

  1. Remove 2 nuts securing exhaust front pipe to mounting bracket on differential housing.
  2. Remove 4 nuts securing exhaust front pipe to exhaust manifold.
  3. Release exhaust front pipe from exhaust manifold.
  4. Remove and discard exhaust manifold flange gasket.
All engines – Remove and discard exhaust manifold flange gasket.

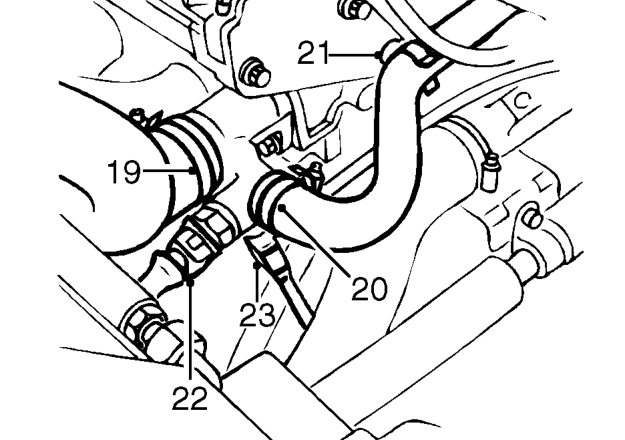

  1. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  2. Loosen clip and disconnect coolant hose from coolant outlet elbow.
  3. Release coolant hose from clip on camshaft rear cover plate.
  4. Disconnect multiplug from ECT sensor.
  5. Disconnect multiplug from coolant temperature gauge sensor.
