Engine - K SeriesAll engines · page 2 of 4
Diagram

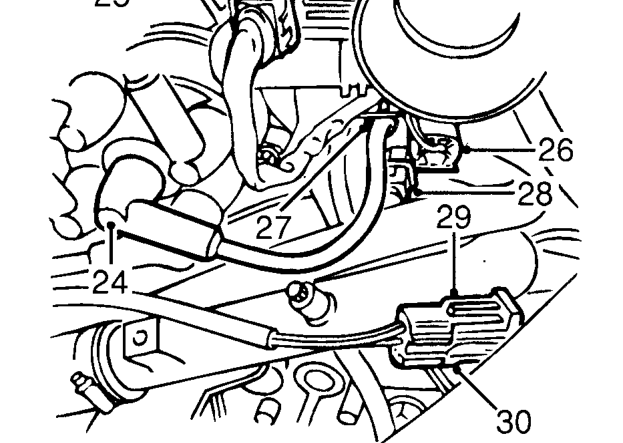

  1. Disconnect coil h.t. lead from distributor cap.
  2. Disconnect multiplug from TP sensor.
  3. Disconnect multiplug from injector harness.
  4. Release coil h.t. lead from clip on bracket.
  5. Disconnect multiplug from IAT sensor.
  6. Disconnect HO2S multiplug from engine harness.
  7. Release HO2S multiplug from clip on bracket.
Release HO2S multiplug from clip on bracket.

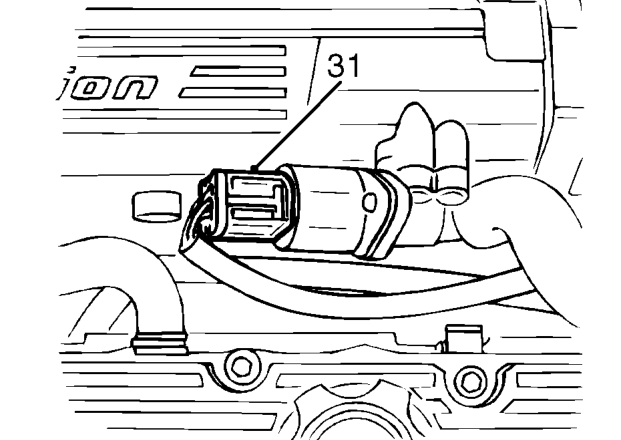

  1. Disconnect multiplug from IACV.
Disconnect multiplug from IACV.

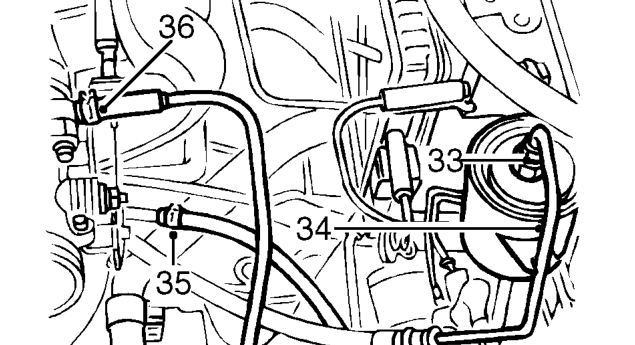

  1. Position absorbent cloth around fuel filter outlet union.
  2. Loosen fuel filter outlet union to relieve fuel pressure.

CAUTION: To prevent damage to fuel system pipes or components use two spanners when loosening or tightening unions.

  1. Disconnect fuel outlet pipe from fuel filter and position aside.
  2. Release clip and disconnect hose from fuel return pipe.

CAUTION: Plug fuel system hoses and connections.

  1. Release clip and disconnect purge hose from throttle housing.
Release clip and disconnect purge hose from throttle housing.

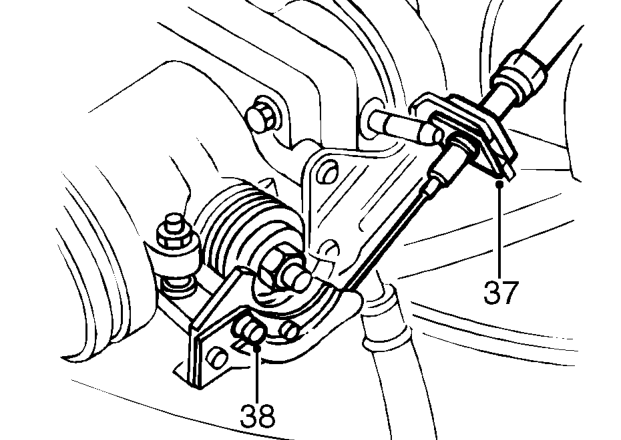

  1. Release throttle cable adjusting nut from abutment bracket.
  2. Release throttle cable from throttle cam.
