Cylinder head gasket with air conditioning fitted (page 2 of 5)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

Engine - K SeriesCylinder head gasket with air conditioning fitted · page 2 of 5

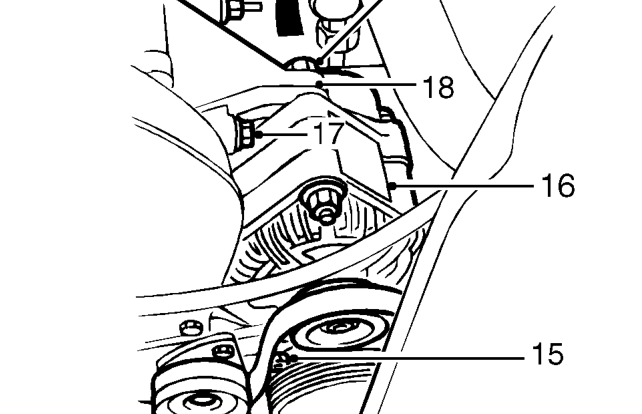

15. Remove 2 nuts and bolts securing alternator to engine.
16. Release alternator from mounting brackets.
17. Remove nut and bolt securing alternator top mounting bracket to cylinder head.
18. Pivot alternator top mounting bracket out of the way.

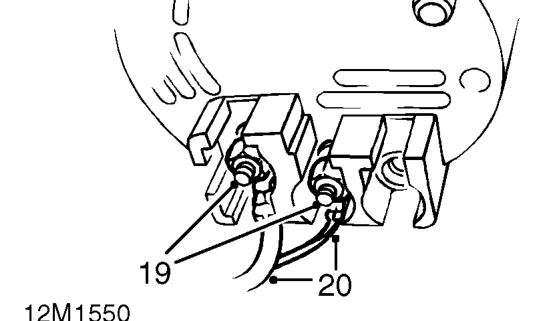

19. Loosen 2 nuts securing cables to alternator.
20. Disconnect 2 cables from alternator.
21. Remove alternator from vehicle.

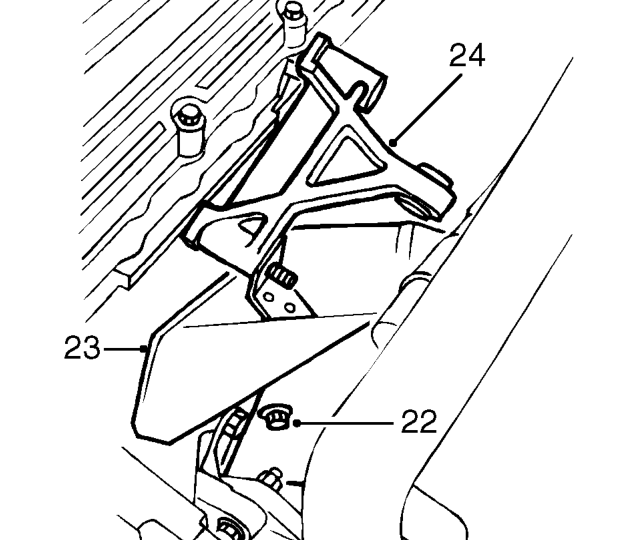

22. Remove bolt securing alternator heatshield to mounting bracket.
23. Release alternator heatshield from stud on cylinder head.
24. Remove alternator top mounting bracket.

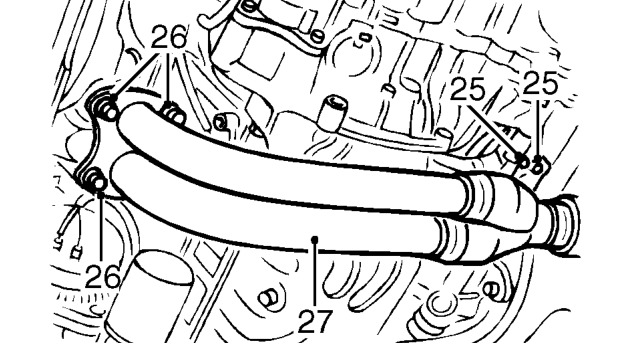

25. Remove 2 nuts securing exhaust front pipe to mounting bracket on differential housing.
26. Remove 4 nuts securing exhaust front pipe to exhaust manifold.
27. Release exhaust front pipe from exhaust manifold.
28. Remove and discard exhaust manifold flange gasket.
