Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Cylinder head gasket with air conditioning fitted (page 4 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - K SeriesCylinder head gasket with air conditioning fitted · page 4 of 5
  1. Release clip and disconnect hose from fuel return pipe.

CAUTION: Plug fuel system hoses and connections.

  1. Release clip and disconnect purge hose from throttle housing.
Release clip and disconnect purge hose from throttle housing.

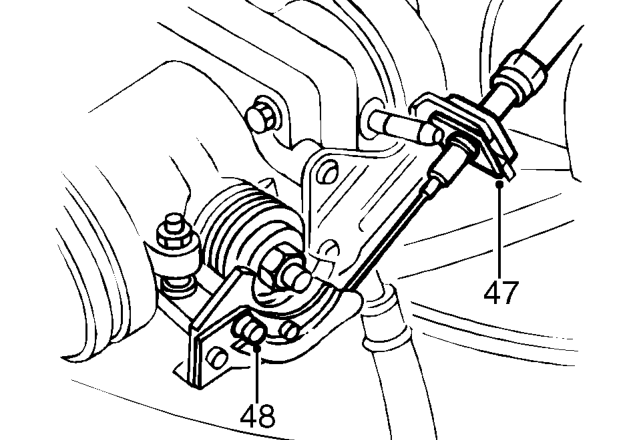

  1. Release throttle cable adjusting nut from abutment bracket.
  2. Release throttle cable from throttle cam.
Release throttle cable from throttle cam.

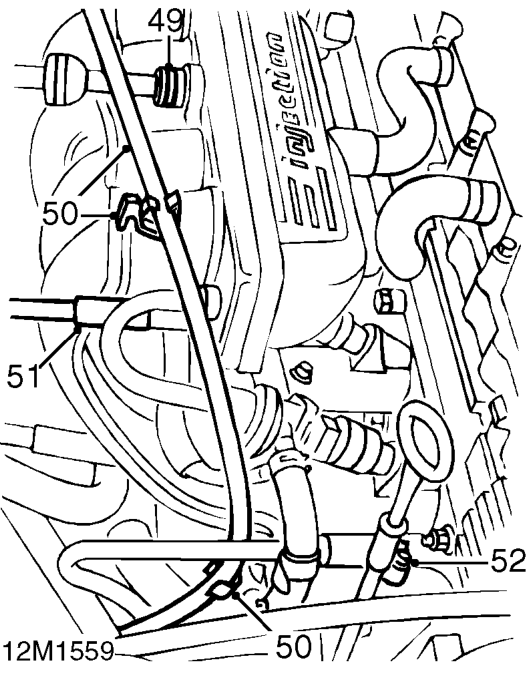

  1. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.
  2. Release throttle cable from 2 clips on inlet manifold.
  3. Disconnect vacuum hose from inlet manifold.
  4. Loosen clip and disconnect expansion tank hose from inlet manifold.
  5. Remove camshaft cover. See this section.
Remove camshaft cover. See this section.

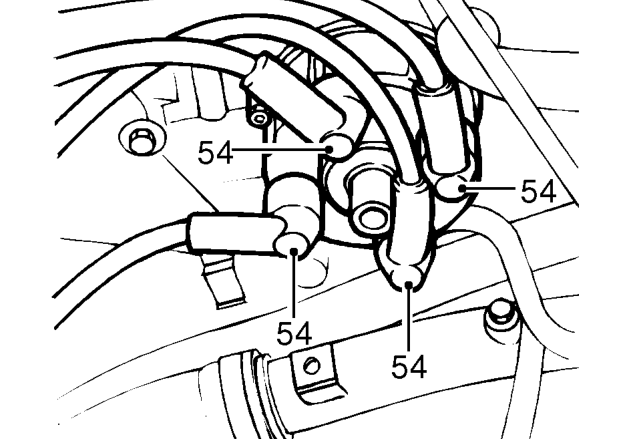

  1. Disconnect h.t. leads from distributor cap.
  2. Remove h.t. leads.
Remove h.t. leads.

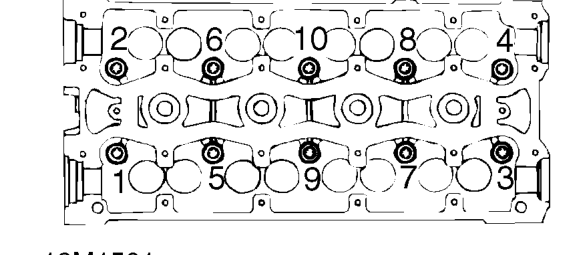

  1. Working in the sequence shown, loosen 10 cylinder head to oil rail bolts.
  2. Remove cylinder head bolts and store in fitted order.
  3. Using assistance, remove cylinder head assembly from cylinder block.

CAUTION: Take care not to damage heated oxygen sensor when removing cylinder head.
