05 · Engine

Cylinder head gasket with air conditioning fitted (page 3 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - K SeriesCylinder head gasket with air conditioning fitted · page 3 of 5

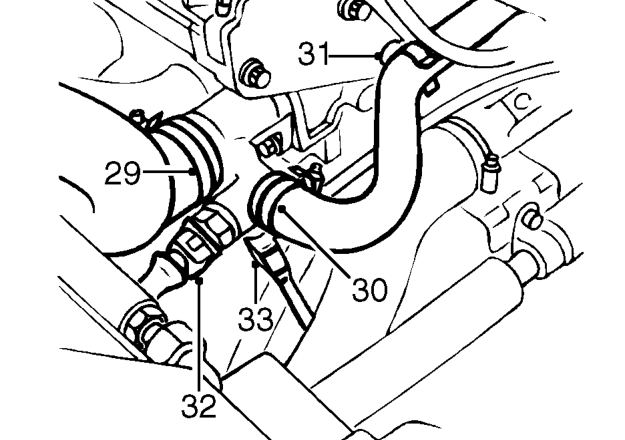

Diagram
  1. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  2. Loosen clip and disconnect coolant hose from coolant outlet elbow.
  3. Release coolant hose from clip on camshaft rear cover plate.
  4. Disconnect multiplug from ECT sensor.
  5. Disconnect multiplug from engine coolant temperature gauge sensor.

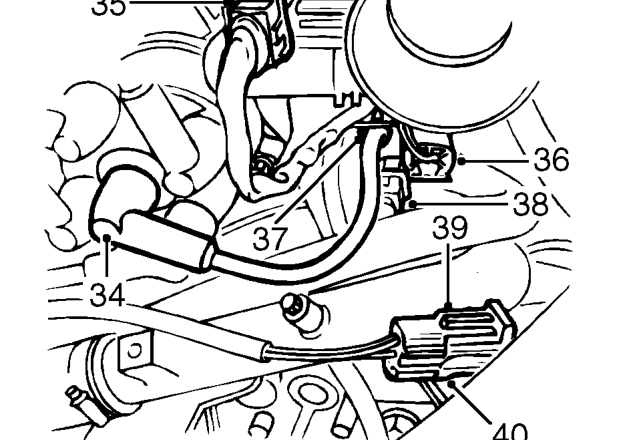

Disconnect multiplug from engine coolant temperature gauge sensor.
  1. Disconnect coil h.t. lead from distributor cap.
  2. Disconnect multiplug from TP sensor.
  3. Disconnect multiplug from injector harness.
  4. Release coil h.t. lead from clip on bracket.
  5. Disconnect multiplug from IAT sensor.
  6. Disconnect HO2S multiplug from engine harness.
  7. Release HO2S multiplug from clip on bracket.

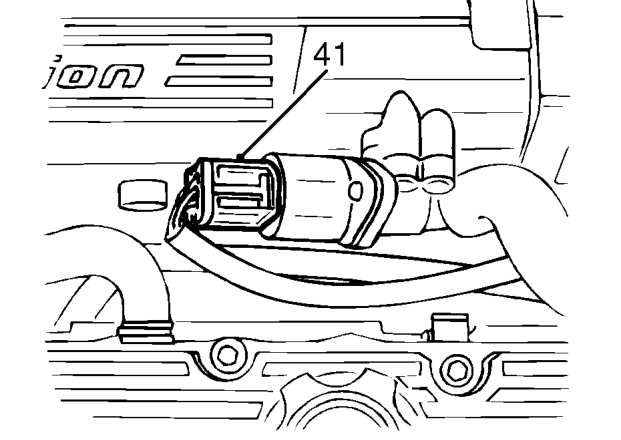

Release HO2S multiplug from clip on bracket.
  1. Disconnect multiplug from IACV.

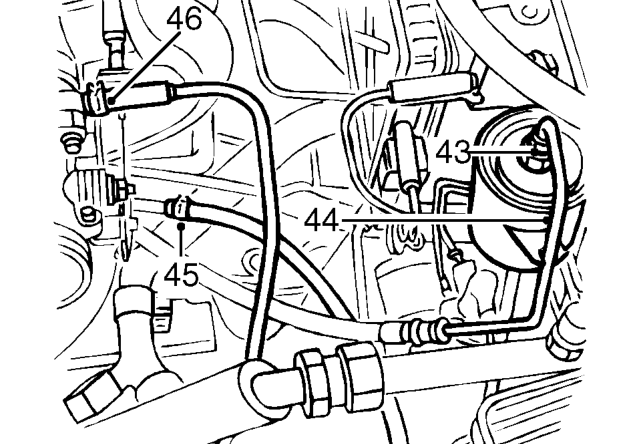

Disconnect multiplug from IACV.
  1. Position absorbent cloth around fuel filter outlet union.
  2. Loosen fuel filter outlet union to relieve fuel pressure.

CAUTION: To prevent damage to fuel system pipes or components use two spanners when loosening or tightening unions.

  1. Disconnect fuel outlet pipe from fuel filter and position aside.
