Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Component location (page 2 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
Automatic gearboxComponent location · page 2 of 5

Right hand drive:

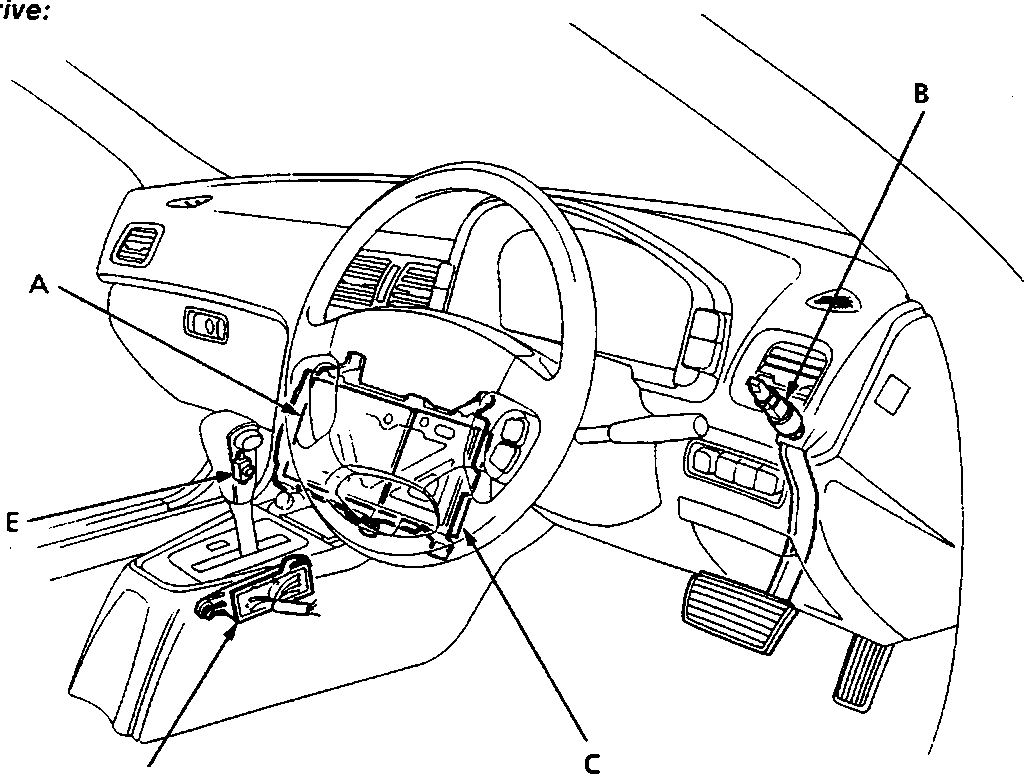

Interior view of the dashboard showing the steering wheel, instrument panel, and centre console with callout labels A, B, C, D, and E pointing to various components.

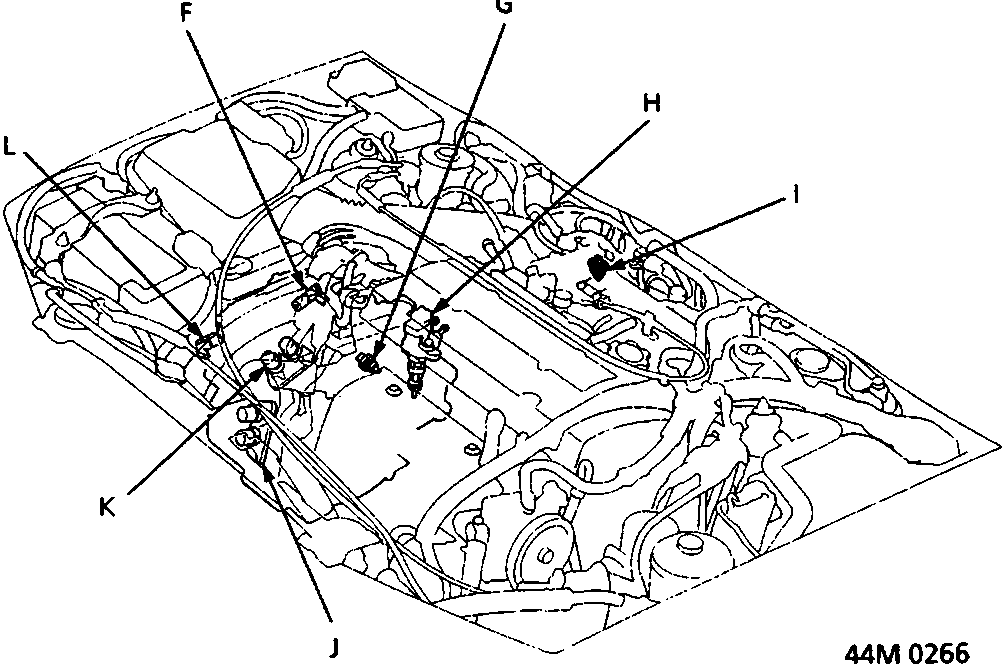

Top-down technical diagram of the automatic gearbox assembly showing internal components and solenoid valves with callout labels F through L.
  • A Engine control module
  • B Brake light switch
  • C Transmission control module
  • D Selector position switch
  • E Selector switch
  • F Countershaft speed sensor
  • G Coolant temperature sensor
  • H Vehicle speed sensor
  • I Throttle position sensor
  • J Shift control solenoid valve assembly
  • K Lock-up control solenoid valve assembly
  • L Mainshaft speed sensor
