Automatic gearboxComponent location · page 3 of 5

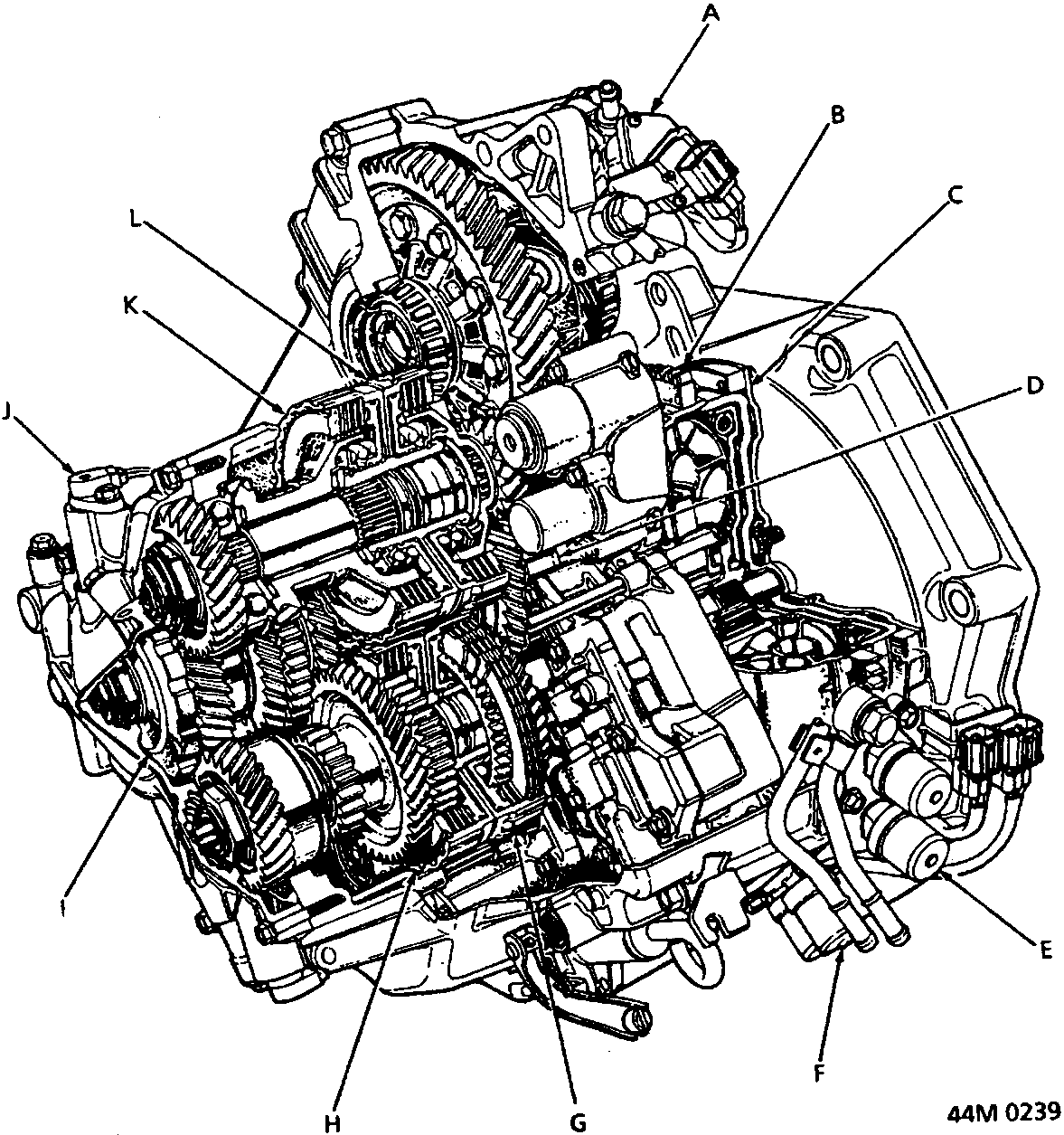

Cross-sectional diagram of the automatic gearbox showing internal components and their locations, labeled A through L.
  • A Vehicle speed sensor
  • B Starter ring gear
  • C Torque converter
  • D 1st, hold clutch
  • E Lock-up control solenoid valve
  • F Shift control solenoid valve
  • G 3rd clutch
  • H 4th clutch
  • I Parking gear
  • J Countershaft speed sensor
  • K 2nd clutch
  • L 1st clutch
