Brakes and ABSCars Without ABS
70M 0253
A Pressure gauge
Cars Without ABS
| Vacuum mm (in) Hg | Min. Line Pressure kg/cm²(psi) |
|---|---|
| 0 (0) | 9.4(130) |
| 300 (11.8) | 56.0(800) |
| 500 (19.7) | 87.0(1200) |
Cars with ABS
| Vacuum mm (in) HG | Min. Line Pressure kg/cm²(psi) |
|---|---|
| 0 (0) | 8.3 (120) |
| 300 (11.8) | 62.0(880) |
| 500 (19.7) | 83.2(1200) |
- Inspect the master cylinder for leaks if the readings do not fall within the limits shown above.

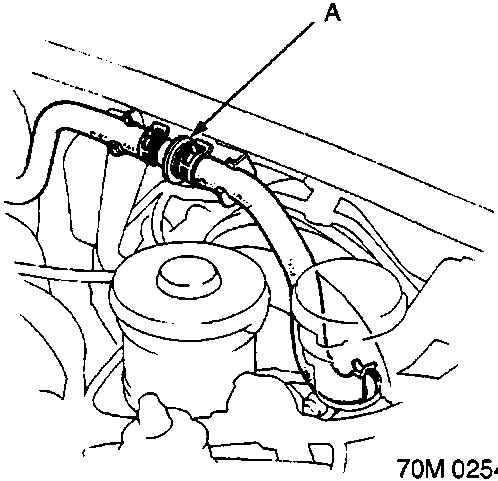

Booster Check Valve Test
70M 0254
A Check valve
- Disconnect the brake booster vacuum hose at the booster.
- Start the engine and let it idle. There should be vacuum available. If no vacuum is available, the check valve is not working correctly. Replace the check valve and retest.
