Brakes and ABS70M 0227 · page 1 of 2
GREASE
(10 Nm)
70M 0227

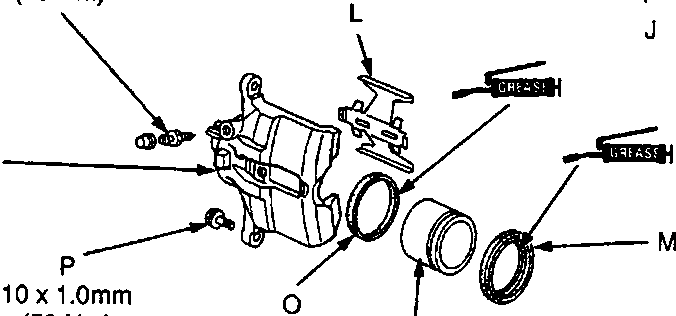

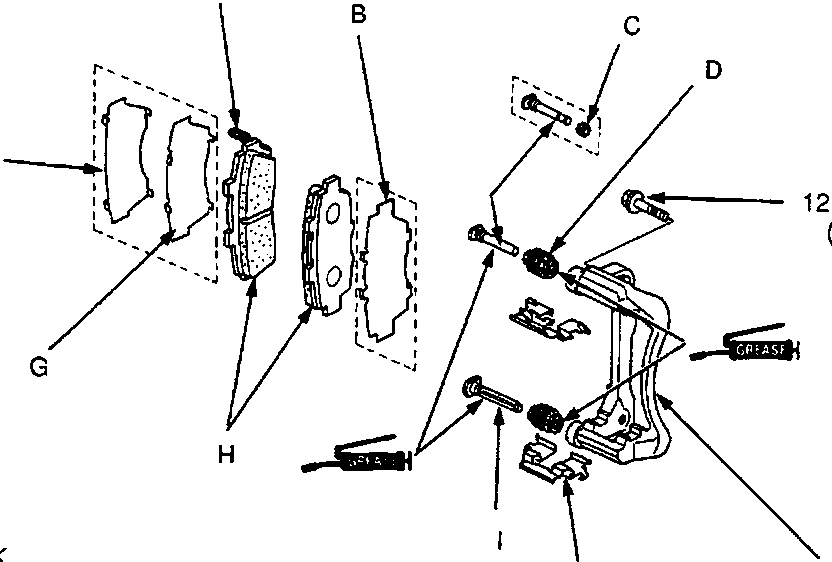

| A | Wear indicator | K | Bleed screw |
| B | Outer pad shim | L | Pad spring (A/T only) |
| C | Bushing (M/T only) | M | Piston boot |
| D | Pin boot | N | Piston |
| E | Caliper bracket | O | Piston seal |
| F | Inner shim B | P | Caliper bolt |
| G | Inner shim A | Q | Caliper |
| H | Brake pads | ||
| I | Pin A | ||
| J | Retainer |
WARNING: Never use an air hose or dry brush to clean brake assemblies.
Use a vacuum cleaner, to avoid breathing brake dust.
Contaminated brake discs or pads reduce stopping ability.
When reusing the pads, always reinstall the brake pads to their original positions to prevent loss of braking efficiency.
CAUTION: Do not allow brake fluid to come into contact with the paintwork as it will cause surface damage. If brake fluid is spilled on the paintwork, wash it off immediately with water.
To prevent spills, cover the hose joints with rags or cloth.
Clean all parts in brake fluid and air dry; blow out all passages with compressed air.
