Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition14 · Brakes and ABS
14 · Brakes

Original page

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Brakes: repairs › Original page

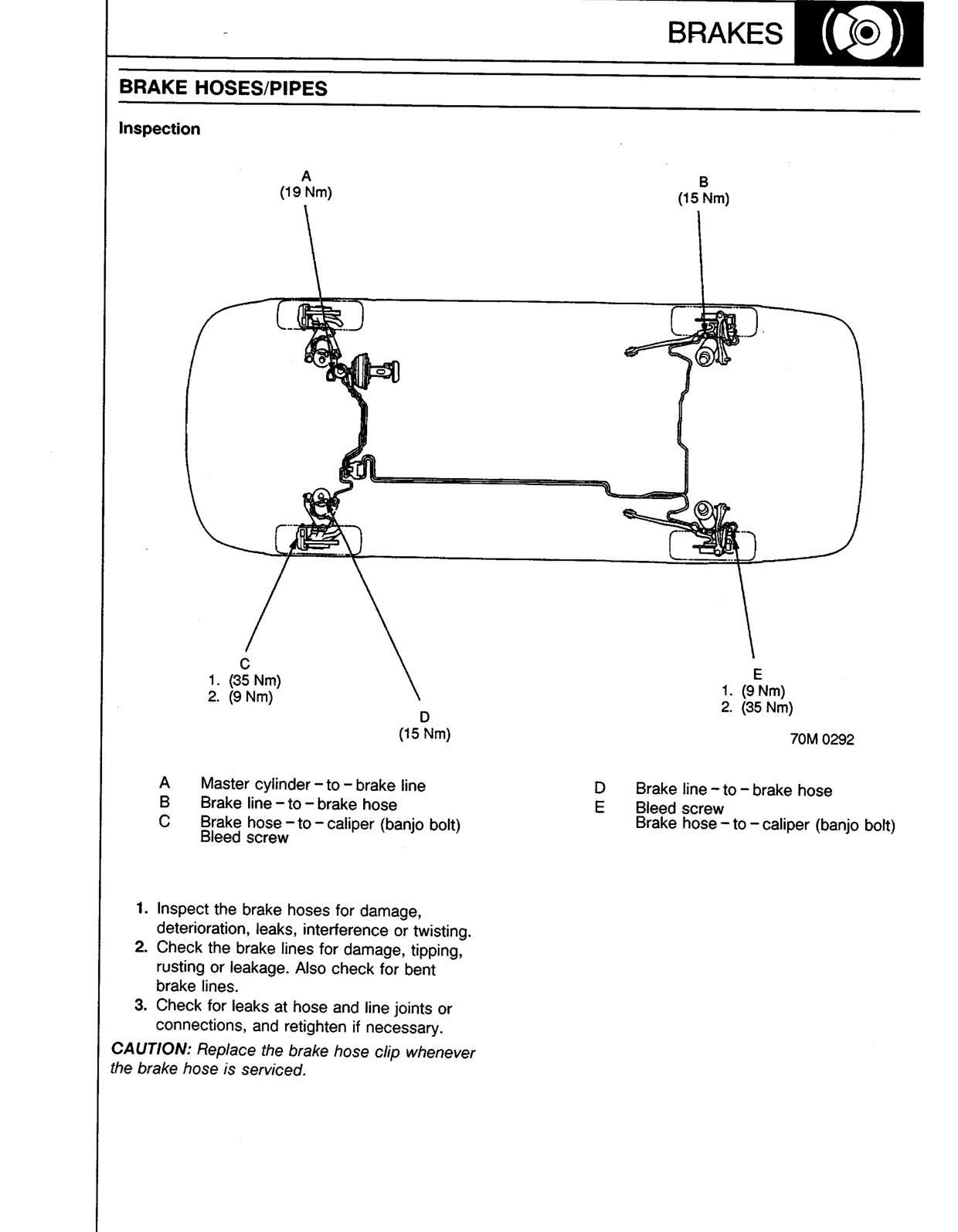

Brakes and ABSOriginal page · page 1 of 5

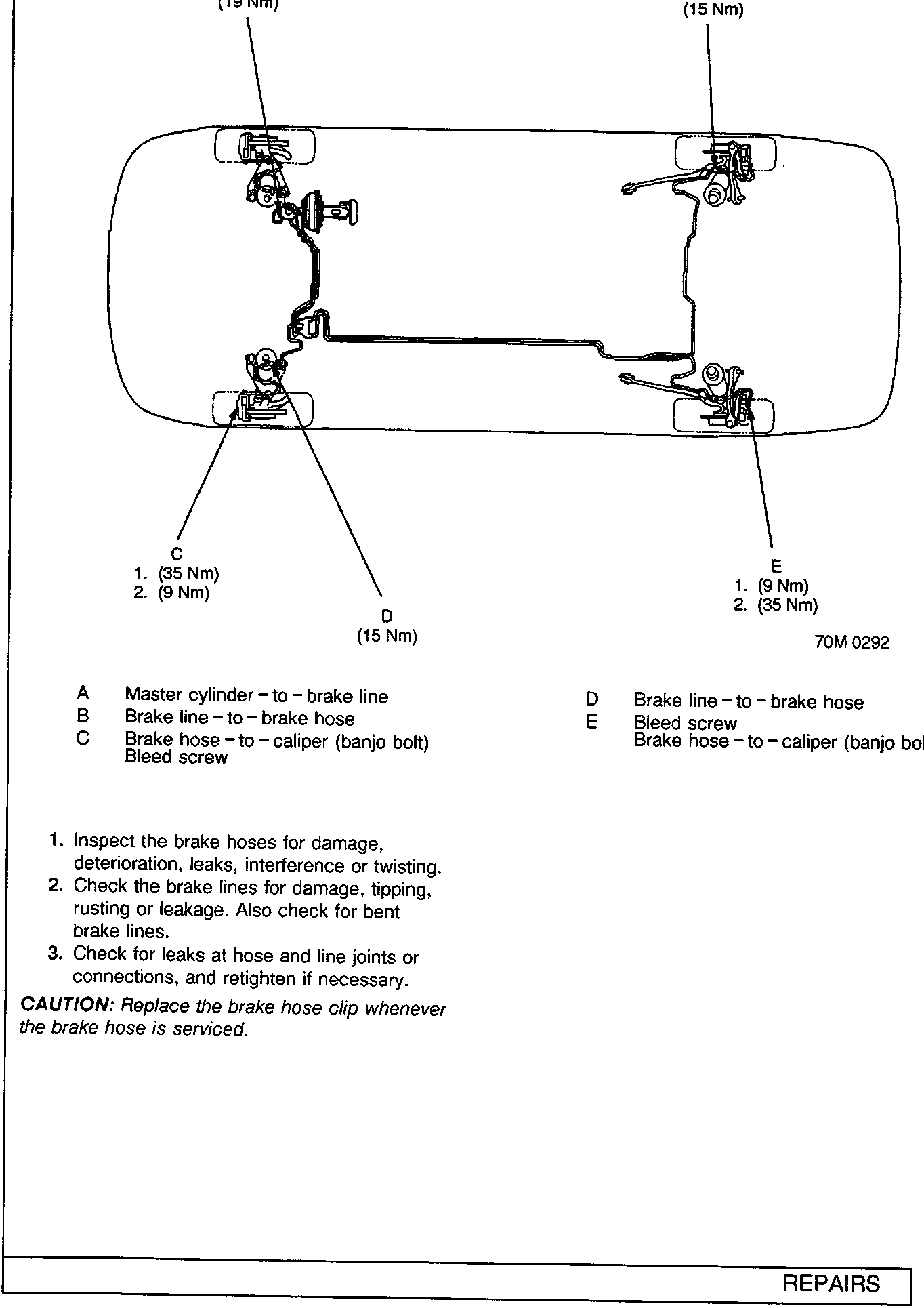

Diagram of the vehicle undercarriage showing brake hose and pipe routing with callout labels A, B, C, D, E and associated torque values.
  1. A Master cylinder – to – brake line
  2. B Brake line – to – brake hose
  3. C Brake hose – to – caliper (banjo bolt) Bleed screw
  4. D Brake line – to – brake hose
  5. E Bleed screw Brake hose – to – caliper (banjo bolt)
  6. Inspect the brake hoses for damage, deterioration, leaks, interference or twisting.
  7. Check the brake lines for damage, tipping, rusting or leakage. Also check for bent brake lines.
  8. Check for leaks at hose and line joints or connections, and retighten if necessary.

CAUTION: Replace the brake hose clip whenever the brake hose is serviced.
