14 · Brakes

Original page (page 3 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Brakes: repairs
Brakes and ABSOriginal page · page 3 of 5

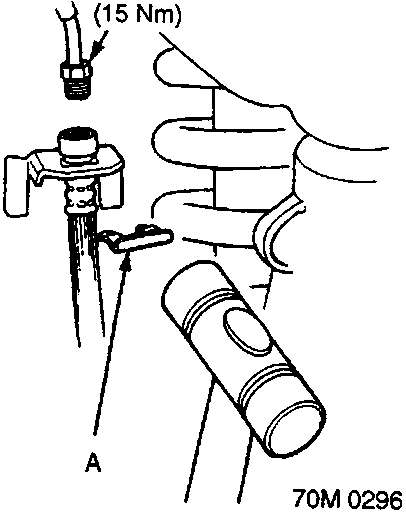

Diagram showing a hand installing a brake hose clip (A) onto a brake hose, with a torque specification of (15 Nm) indicated at the top.

A Brake hose clip

CAUTION: Do not twist the brake hose excessively.

  1. Install a new brake hose clip on the brake hose.
  2. Connect the brake pipe to the brake hose.
  3. After installing the brake hose, bleed the brake system.
  4. Perform the following checks.
  • Check the brake hose and line joint for leaks, and tighten if necessary.
  • Check the brake hoses for interference or twisting.
