CAUTION: The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable failure.

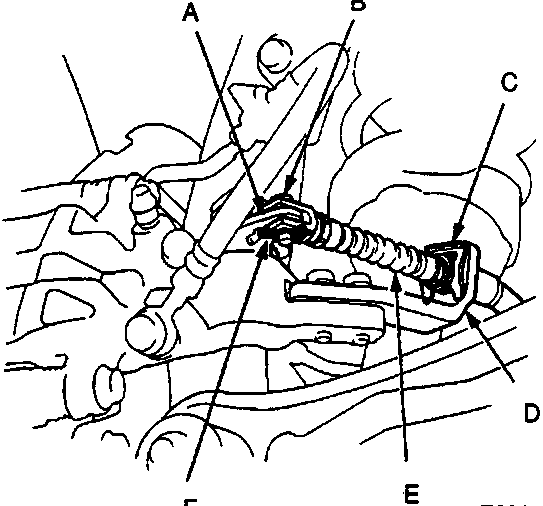

Diagram of the parking brake cable connection showing the lever, clevis pin, clip, arm, parking brake cable, and lock pin labeled A through F.
  1. A Lever
  2. B Clevis pin
  3. C Clip
  4. D Arm
  5. E Parking brake cable
  6. F Lock pin
  7. Disconnect the parking brake cable from the lever on the caliper by removing the lock pin and clevis pin, and remove the cable from the arm by removing the clip.
  8. Replace the lock pins and cable clips.
