Brakes: repairs
Brakes and ABSOriginal page · page 7 of 7

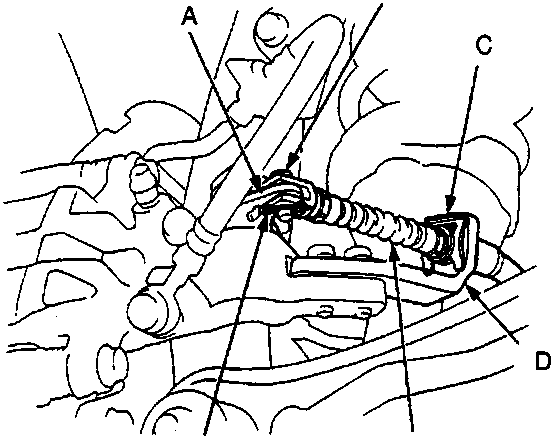

Diagram of parking brake cable connection showing lever, clevis pin, cable clip, arm, parking brake cable, and lock pin
70M 0290 A Lever B Clevis pin C Cable clip D Arm E Parking brake cable F Lock pin 25. Insert the cable through the arm and connect the cable to the lever with the clevis pin and lock pin. Install the cable clip securely.

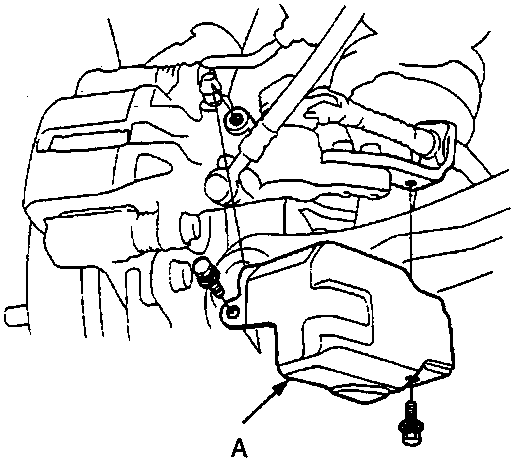

Diagram of caliper shield installation on brake assembly
70M 0291 A Caliper shield 26. Install the caliper shield. 27. Fill the brake reservoir up and bleed the brake system. 28. Operate the brake pedal several times, then adjust the parking brake. 29. After installation, perform the following checks. ● Check for leaks at hose and line joints or connections, and retighten if necessary. ● Check the parking brake lever for operation and adjust if necessary.
