Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition14 · Brakes and ABS
14 · Brakes

Original page (page 6 of 7)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Brakes: repairs
Brakes and ABSOriginal page · page 6 of 7

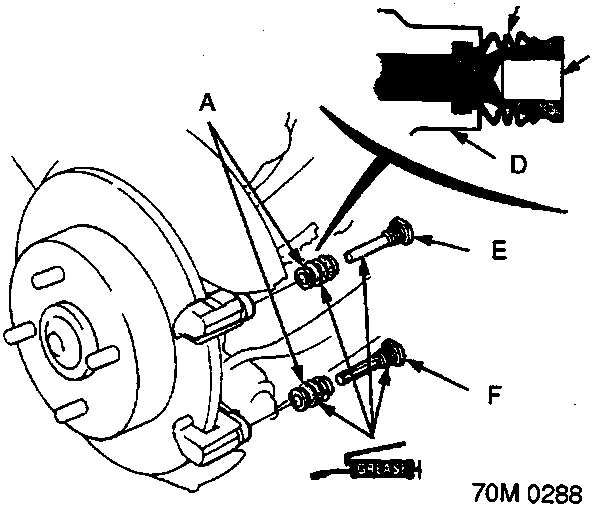

Diagram of caliper bracket assembly showing pins, pin boots, and caliper bracket labeled A through F.
  1. Apply recommended grease in the caliper seal set to sliding surface of the pins and inside of the new pin boots.
  2. Install the pin boots into the groove in the caliper bracket properly.
  3. Insert the pin A and pin B into the caliper bracket.
  4. Install the pin boots into the groove in pins properly.
A
Pin boots
B
Pin boot
C
Pin
D
Caliper bracket
E
Pin B (Black)
F
Pin A

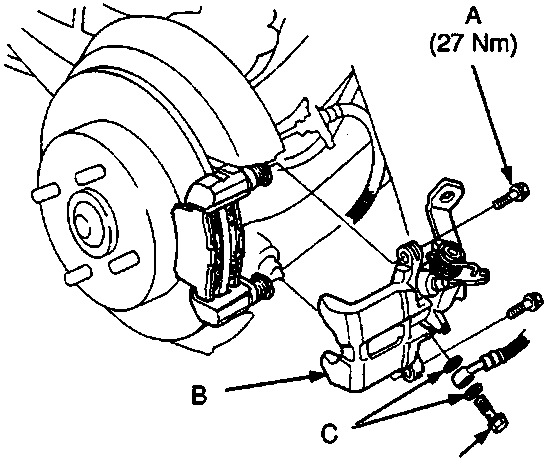

Diagram of caliper assembly showing caliper mounting bolts, caliper, sealing washers, and banjo bolt with torque values.
A
Caliper mounting bolts
B
Caliper
C
Sealing washers
D
Banjo bolt
  1. Install the brake pad retainers and brake pads.
  2. Align the cutout in the piston with the tab on the inner pad.
  3. Install the caliper on the caliper bracket and tighten the caliper mounting bolts.
  4. Connect the brake hose to the caliper with new sealing washers and tighten the banjo bolt.
