Supplementary restraint system (SRS)Fault Finding Intermittent Failures · page 4 of 4

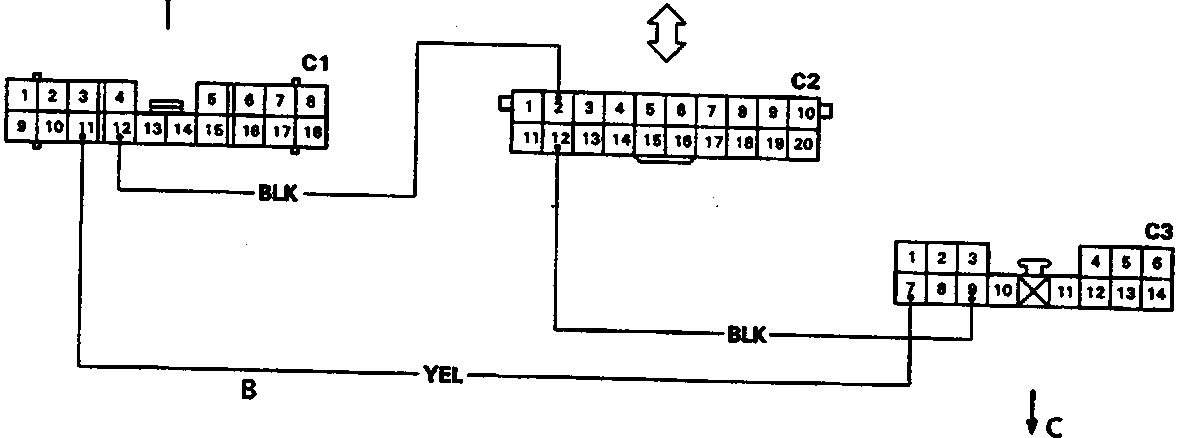

SRS Indicator Light Wiring Connections diagram showing connectors C1, C2, and C3 with wire colors BLK and YEL

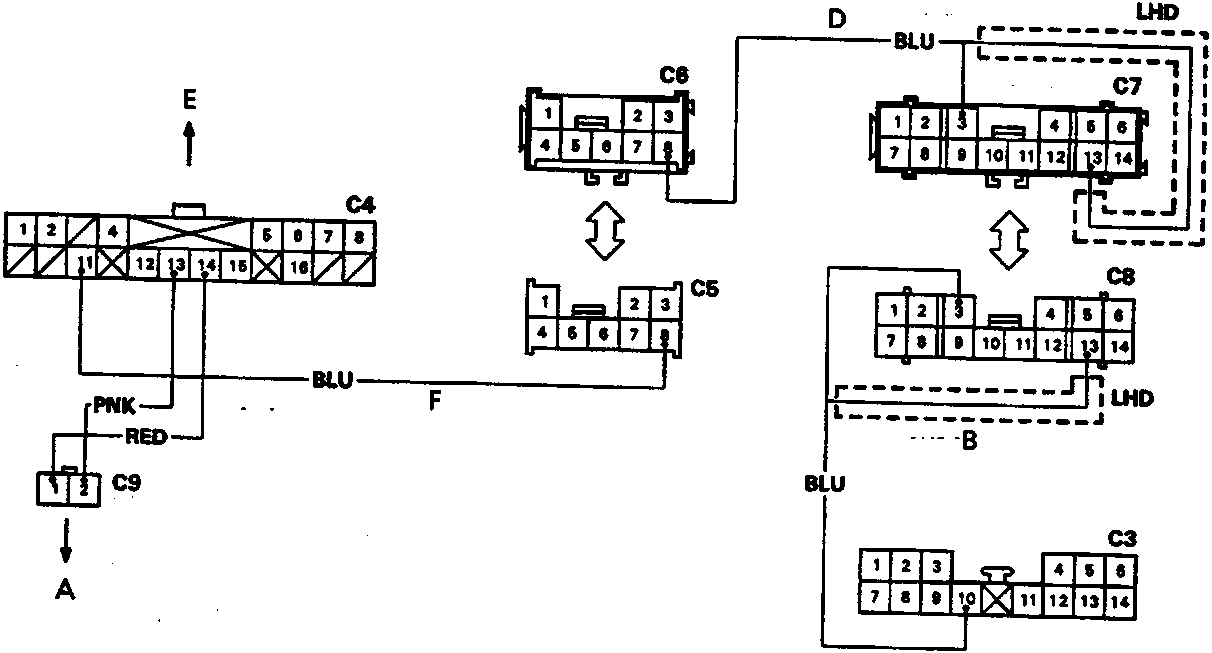

SRS Indicator Light Wiring Connections diagram showing connectors C3, C4, C5, C6, C7, C8, and C9 with wire colors BLU, PNK, RED and LHD markings

86M3281

A To under dash fuseboxC1 Dashboard harness 18 – P connector
B Dashboard harnessC2 Joint connector
C To gauge assemblyC3 Dashboard harness 14 – P connector
D Main harnessC4 SRS main harness 18 – P connector
E To SRS unitC5 SRS main harness 8 – P connector
F SRS Main harnessC6 Main harness 8 – P connector
C7 Main harness 14 – P connector
C8 Dashboard harness 14 – P connector
C9 SRS main harness 2 – P connector
