Cylinder head inspection (page 4 of 9)

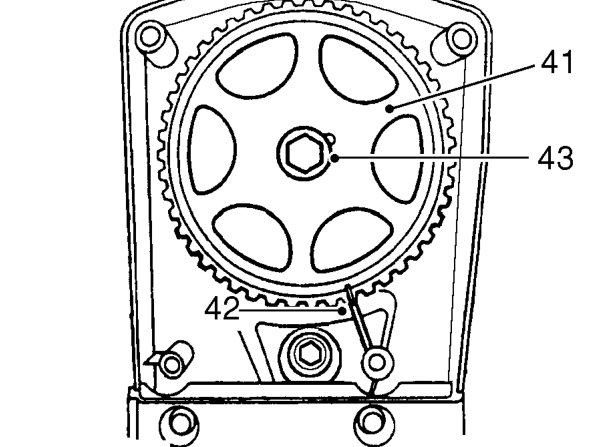

40. Clean camshaft drive gear and mating face.
41. Locate camshaft drive gear on camshaft.
42. Ensure timing marks on camshaft drive gear and back cover are aligned.
43. Apply clean engine oil to threads of new camshaft gear retaining bolt, fit but do not tighten bolt.

CAUTION: Ensure camshaft does not rotate.

NOTE: Bolt is tightened after timing belt has been tensioned. Do not fit timing belt at this stage.

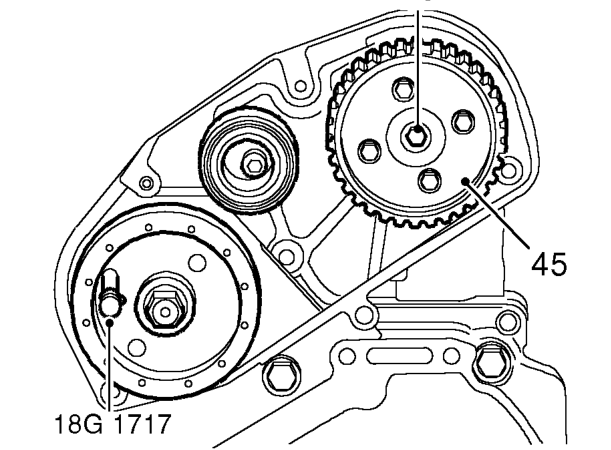

44. Clean injection pump timing belt camshaft gear and mating face.
45. Locate camshaft gear on camshaft.
46. Apply clean engine oil to threads of new gear retaining bolt, fit but do not tighten bolt.

CAUTION: Ensure camshaft does not rotate.

NOTE: Bolt is tightened after injection pump timing belt has been tensioned. Do not fit timing belt at this stage.
