Rover 620 Diesel Repair Manual Supplement (1995-1999)03 · Engine
03 · Engine

Cylinder head inspection (page 6 of 9)

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs
EngineCylinder head inspection · page 6 of 9
Diagram

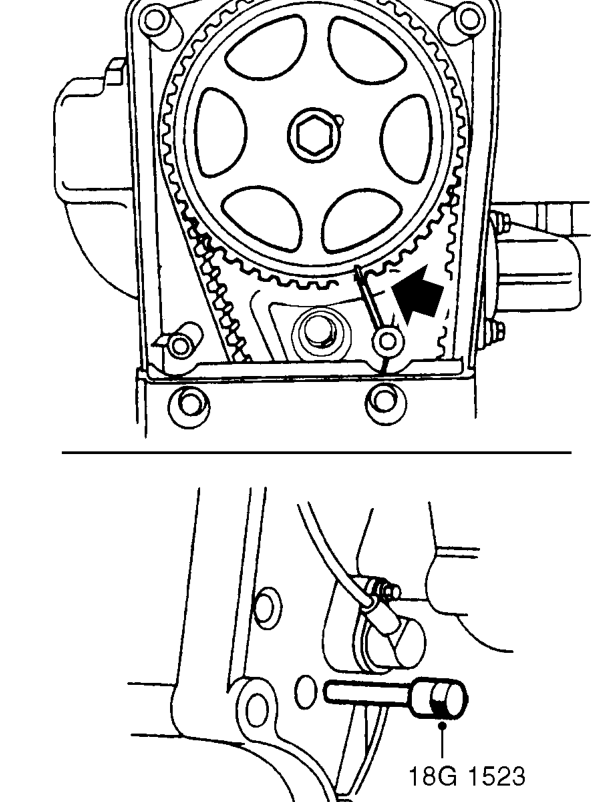

  1. Using crankshaft pulley bolt, rotate crankshaft 2 turns clockwise and align camshaft gear timing mark with mark on back cover.

CAUTION: Do not use camshaft gear, gear bolt or timing belt to rotate crankshaft.

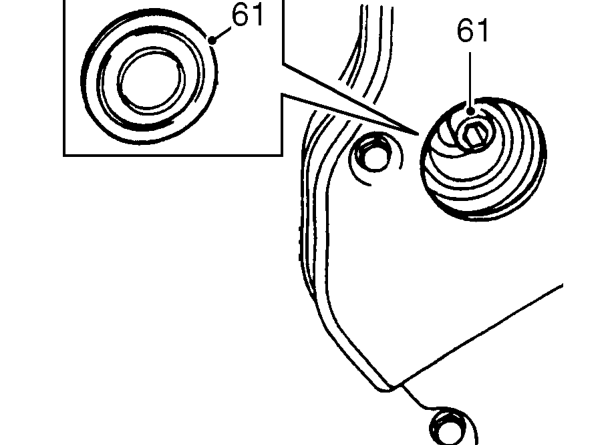

  1. Insert timing pin 18G 1523 into hole in flywheel ensuring that pin is fully inserted in hole.
Insert timing pin 18G 1523 into hole in flywheel ensuring that pin is fully inserted in ho
  1. Loosen Allen bolt securing tensioner pulley, allow pulley to react then tighten Allen bolt to 55 Nm. Fit access plug into timing belt front cover.
  2. Remove timing pin 18G 1523.
Remove timing pin 18G 1523.

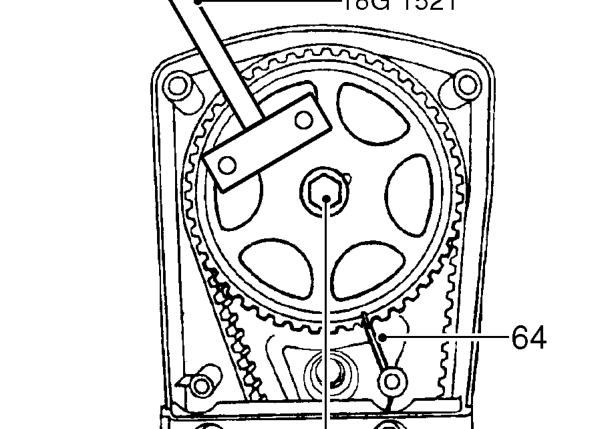

  1. Restrain camshaft gear using tool 18G 1521 and tighten bolt to 20 Nm then further 90° .
  2. Check that camshaft gear timing mark is still aligned with mark on back cover.
  3. Insert timing pin 18G 1523 into hole in flywheel ensuring pin is fully inserted in hole.
